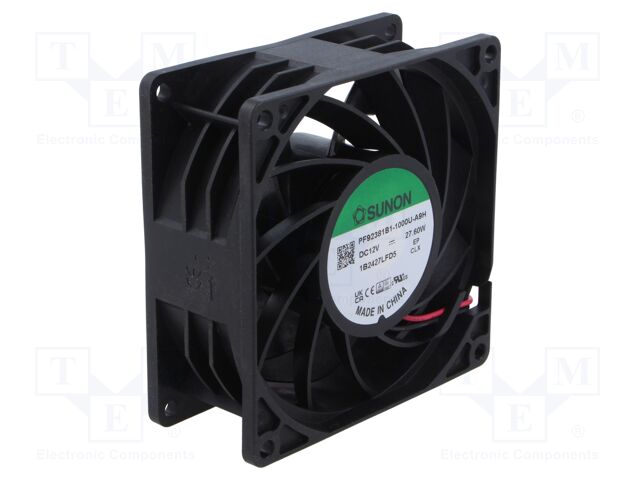

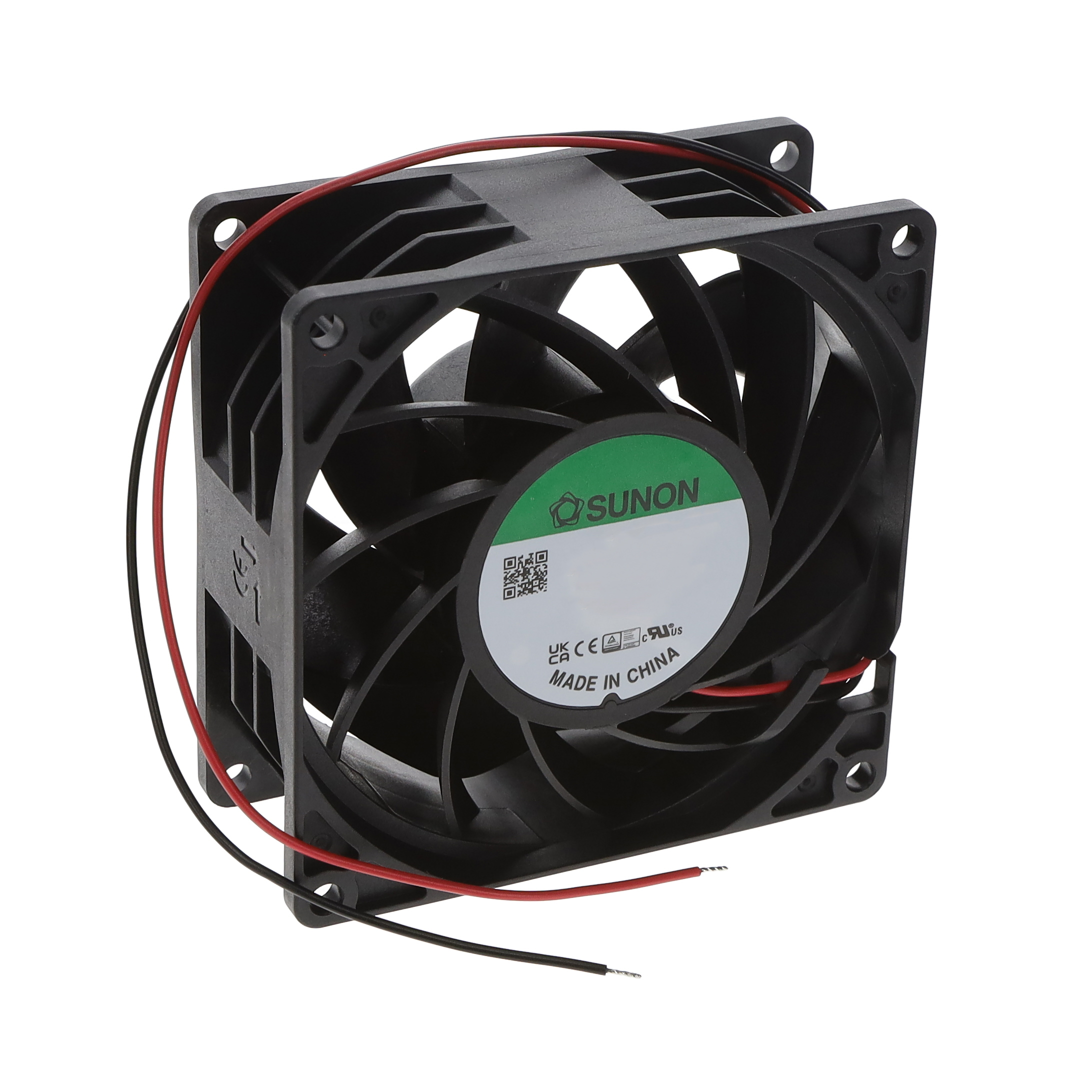

PF92381B1-1000U-A9H SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; ball; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 8...13.2V DC
Fan dimensions: 92x92x38mm
Power consumption: 25.54W
Current rating: 2128mA
Fan efficiency: 234.63m3/h
Noise level: 68.5dBA
Kind of Bearing: ball
Rotational rate/speed: 9300 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 49.53mm H2O
Wire size: 24AWG
на замовлення 199 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1243.18 грн |
| 50+ | 1009.89 грн |
Відгуки про товар
Написати відгук
Технічний опис PF92381B1-1000U-A9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; ball; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 8...13.2V DC, Fan dimensions: 92x92x38mm, Power consumption: 25.54W, Current rating: 2128mA, Fan efficiency: 234.63m3/h, Noise level: 68.5dBA, Kind of Bearing: ball, Rotational rate/speed: 9300 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 49.53mm H2O, Wire size: 24AWG, кількість в упаковці: 1 шт.
Інші пропозиції PF92381B1-1000U-A9H за ціною від 1124.72 грн до 2143.51 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PF92381B1-1000U-A9H | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; ball; 24AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 8...13.2V DC Fan dimensions: 92x92x38mm Power consumption: 25.54W Current rating: 2128mA Fan efficiency: 234.63m3/h Noise level: 68.5dBA Kind of Bearing: ball Rotational rate/speed: 9300 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 49.53mm H2O Wire size: 24AWG кількість в упаковці: 1 шт |
на замовлення 199 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||
| PF92381B1-1000U-A9H | Виробник : Sunon Fans |
Description: FAN 60X38MM 12VDC Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Ball RPM: 9300 RPM Air Flow: 138.1 CFM (3.87m³/min) Width: 38.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Tubeaxial Noise: 62.9dB(A) Static Pressure: 1.950 in H2O (485.7 Pa) Power (Watts): 22.2 W |
на замовлення 200 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||
| PF92381B1-1000U-A9H | Виробник : Sunon |
DC Fans Axial Fan, 92x92x38mm, 12VDC, Ball, Auto Restart, Low Vibration, D09052980G-00 |
товару немає в наявності |
