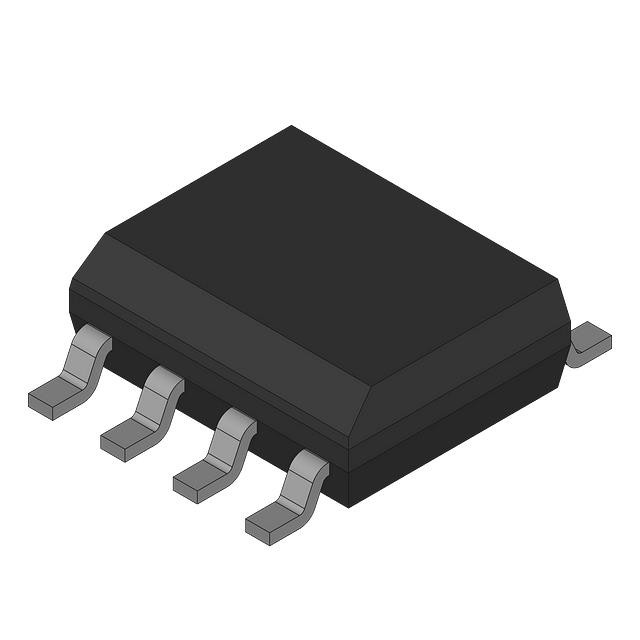

PHP225,118 Nexperia

Description: MOSFET 2P-CH 30V 2.3A 8SO, Packaging: Tape & Reel (TR), Package / Case: 8-SOIC (0.154", 3.90mm Width), Mounting Type: Surface Mount, Configuration: 2 P-Channel (Dual), Operating Temperature: 150°C (TJ), Technology: MOSFET (Metal Oxide), Power - Max: 2W, Drain to Source Voltage (Vdss): 30V, Current - Continuous Drain (Id) @ 25°C: 2.3A, Input Capacitance (Ciss) (Max) @ Vds: 250pF @ 20V, Rds On (Max) @ Id, Vgs: 250mOhm @ 1A, 10V, Gate Charge (Qg) (Max) @ Vgs: 25nC @ 10V, FET Feature: Logic Level Gate, Vgs(th) (Max) @ Id: 2.8V @ 1mA, Supplier Device Package: 8-SO.
