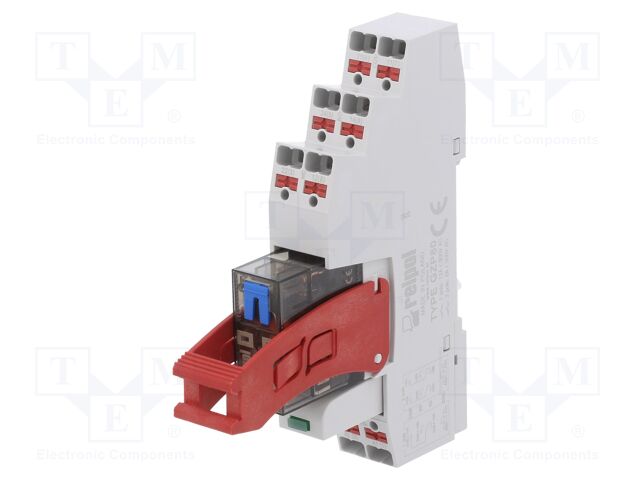

PI84P-024DC-M41G-PS-2012 RELPOL

Category: Electromagnetic Relays - Sets, Description: Relay: interface; Ucoil: 24VDC; DPDT; 8A; 8A/250VAC; 8A/24VDC; PI84, Contact material: AgNi, Manufacturer series: PI84, Electrical connection: Push-in, Relay variant: Relay set, DC contacts rating @R: 8A / 24V DC, AC contacts rating @R: 8A / 250V AC, Body dimensions: 97x15.9x75.8mm, Operating temperature: -40...70°C, Contacts configuration: DPDT, Leads: spring clamps, Switching capacity: 2kVA, Kit contents: ejector; holder; indication module; label; RM84 relay, Operate time: 7ms, OEM number: 864845, Switched voltage: max. 250V AC; max. 300V DC, Release time: 3ms, Max. operating current: 8A, Coil voltage: 24V DC, Contact resistance: 100mΩ, Type of relay: interface, Mounting: for DIN rail mounting; on panel.
