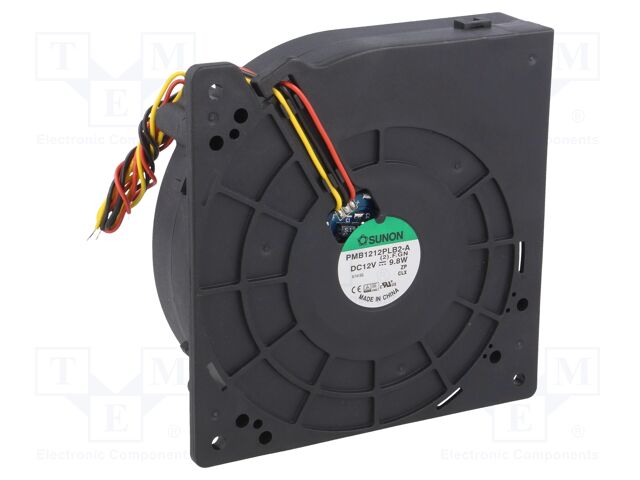

PMB1212PLB2-A(2).F.GN SUNON

Category: DC12V Fans
Description: Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball; 24AWG
Type of fan: DC
Kind of fan: blower
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 120x120x32mm
Power consumption: 9.8W
Current rating: 0.82A
Fan efficiency: 61m3/h
Noise level: 53.8dBA
Kind of Bearing: ball
Rotational rate/speed: 2500 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Static pressure: 22.6mm H2O
Wire size: 24AWG
Lead length: 0.3m
Additional functions: autorestart
Signal output: F type
Flammability rating: UL94V-0
Fan motor: brushless DC
Current and power consumption tolerance: ±15%
на замовлення 220 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
1+ | 1549.65 грн |
10+ | 1287.49 грн |
44+ | 1211.75 грн |
Відгуки про товар
Написати відгук
Технічний опис PMB1212PLB2-A(2).F.GN SUNON
Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball; 24AWG, Type of fan: DC, Kind of fan: blower, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 120x120x32mm, Power consumption: 9.8W, Current rating: 0.82A, Fan efficiency: 61m3/h, Noise level: 53.8dBA, Kind of Bearing: ball, Rotational rate/speed: 2500 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Static pressure: 22.6mm H2O, Wire size: 24AWG, Lead length: 0.3m, Additional functions: autorestart, Signal output: F type, Flammability rating: UL94V-0, Fan motor: brushless DC, Current and power consumption tolerance: ±15%, кількість в упаковці: 1 шт.
Інші пропозиції PMB1212PLB2-A(2).F.GN за ціною від 1454.10 грн до 2294.22 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PMB1212PLB2-A(2).F.GN | Виробник : SUNON |
![]() Description: Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball; 24AWG Type of fan: DC Kind of fan: blower Supply voltage: 12V DC Operating voltage: 6...13.8V DC Fan dimensions: 120x120x32mm Power consumption: 9.8W Current rating: 0.82A Fan efficiency: 61m3/h Noise level: 53.8dBA Kind of Bearing: ball Rotational rate/speed: 2500 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x3 Operating temperature: -10...70°C Static pressure: 22.6mm H2O Wire size: 24AWG Lead length: 0.3m Additional functions: autorestart Signal output: F type Flammability rating: UL94V-0 Fan motor: brushless DC Current and power consumption tolerance: ±15% кількість в упаковці: 1 шт |
на замовлення 220 шт: термін постачання 14-21 дні (днів) |
|
||||||||
PMB1212PLB2-A(2).F.GN | Виробник : Sunon | PMB1212PLB2-A(2).F.GN |
на замовлення 220 шт: термін постачання 21-31 дні (днів) |
|
