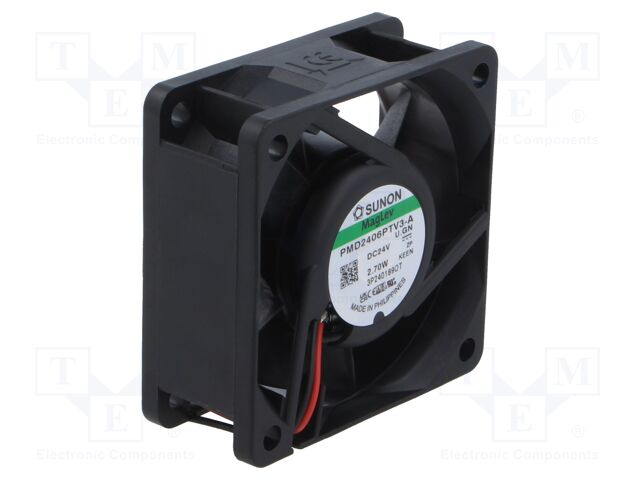

PMD2406PTV3-A P/N:U.GN SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x25mm; 49.27m3/h; 37dBA; Vapo; 9.14mmH2O
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 60x60x25mm
Power consumption: 2.7W
Current rating: 0.114A
Fan efficiency: 49.27m3/h
Noise level: 37dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5600 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 9.14mm H2O
Wire size: 26AWG
Additional functions: autorestart
Fan motor: brushless DC
Operating voltage: 10...27.6V DC
Insulation class: A
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x25mm; 49.27m3/h; 37dBA; Vapo; 9.14mmH2O
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 60x60x25mm
Power consumption: 2.7W
Current rating: 0.114A
Fan efficiency: 49.27m3/h
Noise level: 37dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5600 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 9.14mm H2O
Wire size: 26AWG
Additional functions: autorestart
Fan motor: brushless DC
Operating voltage: 10...27.6V DC
Insulation class: A
на замовлення 35 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 687.87 грн |
| 10+ | 610.77 грн |
Відгуки про товар
Написати відгук
Технічний опис PMD2406PTV3-A P/N:U.GN SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 60x60x25mm; 49.27m3/h; 37dBA; Vapo; 9.14mmH2O, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 60x60x25mm, Power consumption: 2.7W, Current rating: 0.114A, Fan efficiency: 49.27m3/h, Noise level: 37dBA, Kind of Bearing: Vapo, Rotational rate/speed: 5600 (±15%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 9.14mm H2O, Wire size: 26AWG, Additional functions: autorestart, Fan motor: brushless DC, Operating voltage: 10...27.6V DC, Insulation class: A, кількість в упаковці: 1 шт.
