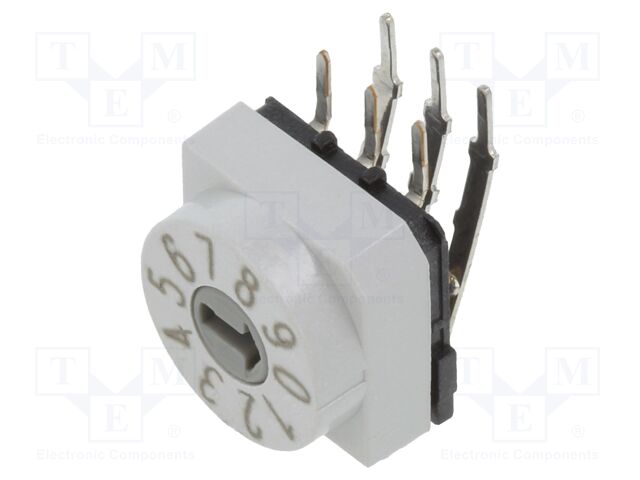

PT65102L254 PTR HARTMANN
Виробник: PTR HARTMANN
Category: Encoding Switches
Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65
Kind of encoding switch: DEC/BCD
Type of switch: encoding switch
Mounting: THT
Switches features: without knob
Operating temperature: -20...70°C
DC contacts rating @R: 1µA / 20mV DC
Terminal pitch: 2.54mm
Body dimensions: 10x10x6.8mm
Max. contact resistance:: 80mΩ
Stable positions number: 10
Number of positions: 10
Min. insulation resistance: 0.1GΩ
Manufacturer series: PT65
Leads: angled; for PCB
| Кількість | Ціна |
|---|---|
| 2+ | 324.23 грн |
| 25+ | 270.88 грн |
Відгуки про товар
Написати відгук
Технічний опис PT65102L254 PTR HARTMANN
Category: Encoding Switches, Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65, Kind of encoding switch: DEC/BCD, Type of switch: encoding switch, Mounting: THT, Switches features: without knob, Operating temperature: -20...70°C, DC contacts rating @R: 1µA / 20mV DC, Terminal pitch: 2.54mm, Body dimensions: 10x10x6.8mm, Max. contact resistance:: 80mΩ, Stable positions number: 10, Number of positions: 10, Min. insulation resistance: 0.1GΩ, Manufacturer series: PT65, Leads: angled; for PCB.
Інші пропозиції PT65102L254 за ціною від 443.12 грн до 778.71 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PT65102L254 | Виробник : Apem |
Coded Rotary Switches 10POS 0.15A 24VDC |
на замовлення 45 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
 |
PT65102L254 | Виробник : APEM Inc. |
Description: SW ROTARY DIP BCD COMP 150MA 24V Number of Positions: 10 Contact Material: Phosphor Bronze Washable: Yes Actuator Level: Flush, Recessed Height Above Board: 0.394" (10.00mm) Actuator Type: Rotary for Tool Termination Style: PC Pin Operating Temperature: -20°C ~ 70°C Circuit: BCD Complement Pitch: 0.100" (2.54mm), Full Mounting Type: Through Hole, Right Angle Current Rating (Amps): 150mA Voltage Rating: 24VDC Contact Finish: Gold Features: Sealed - Flux Protection Packaging: Tube |
товару немає в наявності |
