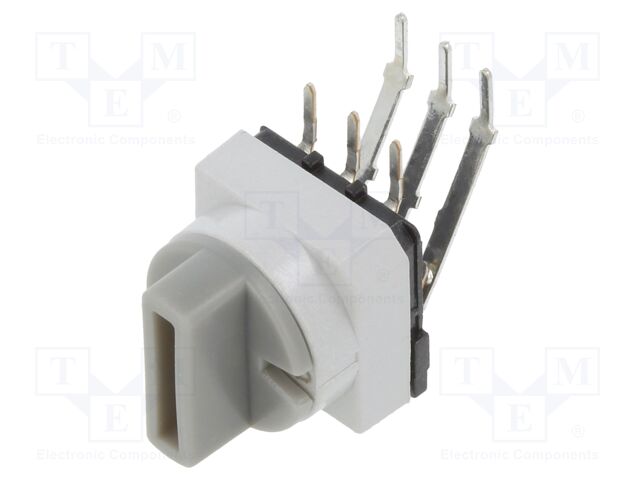

PT65502L508 PTR HARTMANN
Виробник: PTR HARTMANN
Category: Encoding Switches
Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65
Manufacturer series: PT65
Leads: angled; for PCB
Kind of encoding switch: DEC/BCD
Type of switch: encoding switch
Mounting: THT
Switches features: with knob
Operating temperature: -20...70°C
DC contacts rating @R: 1µA / 20mV DC
Terminal pitch: 2.54mm
Body dimensions: 10x10x6.8mm
Max. contact resistance:: 80mΩ
Stable positions number: 10
Number of positions: 10
Min. insulation resistance: 0.1GΩ
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 278.58 грн |
| 10+ | 232.15 грн |
| 25+ | 192.36 грн |
| 50+ | 165.82 грн |
Відгуки про товар
Написати відгук
Технічний опис PT65502L508 PTR HARTMANN
Category: Encoding Switches, Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65, Manufacturer series: PT65, Leads: angled; for PCB, Kind of encoding switch: DEC/BCD, Type of switch: encoding switch, Mounting: THT, Switches features: with knob, Operating temperature: -20...70°C, DC contacts rating @R: 1µA / 20mV DC, Terminal pitch: 2.54mm, Body dimensions: 10x10x6.8mm, Max. contact resistance:: 80mΩ, Stable positions number: 10, Number of positions: 10, Min. insulation resistance: 0.1GΩ.
Інші пропозиції PT65502L508
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
PT65502L508 | APEM Inc. |
Description: SW ROTARY DIP BCD COMP 0.15A 24V Current Rating (Amps): 150mA Voltage Rating: 24VDC Contact Finish: Gold Features: Sealed - Flux Protection Packaging: Tube Number of Positions: 10 Contact Material: Phosphor Bronze Washable: Yes Actuator Level: Raised Height Above Board: 0.394" (10.00mm) Actuator Type: Rotary with Knob Termination Style: PC Pin Operating Temperature: -20°C ~ 70°C Circuit: BCD Complement Pitch: 0.100" (2.54mm), Full Mounting Type: Through Hole, Right Angle |
товару немає в наявності |
Мінімальне замовлення: 50 шт В кошику од. на суму грн. |
 |
PT65502L508 | Apem |
Coded Rotary Switches 10POS R/A .2in SWITCH ROTARY DIP |
товару немає в наявності |
В кошику од. на суму грн. |
| PT65502L508 |
|
Виробник: APEM Inc.
Description: SW ROTARY DIP BCD COMP 0.15A 24V
Current Rating (Amps): 150mA
Voltage Rating: 24VDC
Contact Finish: Gold
Features: Sealed - Flux Protection
Packaging: Tube
Number of Positions: 10
Contact Material: Phosphor Bronze
Washable: Yes
Actuator Level: Raised
Height Above Board: 0.394" (10.00mm)
Actuator Type: Rotary with Knob
Termination Style: PC Pin
Operating Temperature: -20°C ~ 70°C
Circuit: BCD Complement
Pitch: 0.100" (2.54mm), Full
Mounting Type: Through Hole, Right Angle
Description: SW ROTARY DIP BCD COMP 0.15A 24V
Current Rating (Amps): 150mA
Voltage Rating: 24VDC
Contact Finish: Gold
Features: Sealed - Flux Protection
Packaging: Tube
Number of Positions: 10
Contact Material: Phosphor Bronze
Washable: Yes
Actuator Level: Raised
Height Above Board: 0.394" (10.00mm)
Actuator Type: Rotary with Knob
Termination Style: PC Pin
Operating Temperature: -20°C ~ 70°C
Circuit: BCD Complement
Pitch: 0.100" (2.54mm), Full
Mounting Type: Through Hole, Right Angle
товару немає в наявності
Мінімальне замовлення: 50 шт
В кошику
од. на суму грн.
| PT65502L508 |
|
Виробник: Apem
Coded Rotary Switches 10POS R/A .2in SWITCH ROTARY DIP
Coded Rotary Switches 10POS R/A .2in SWITCH ROTARY DIP
