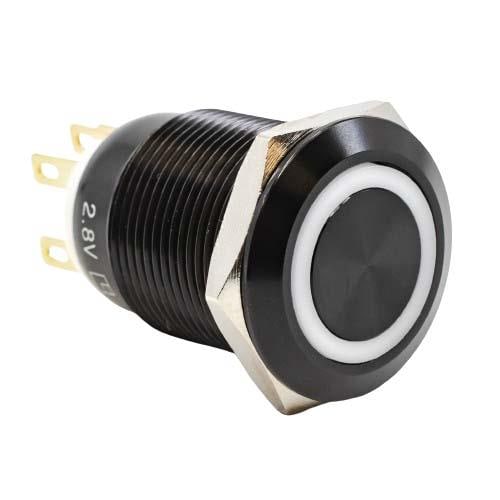

PV4F2Y011-341-M26 E-Switch
Виробник: E-Switch
Pushbutton Switches Anti-vandal, DPST-NO/NC, Off-(On), On-(Off), Panel Mount, Front, Black, LED, Blue, IP65
Відгуки про товар
Написати відгук
Технічний опис PV4F2Y011-341-M26 E-Switch
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST NC + NO; 2A/24VDC; IP65, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST NC + NO, DC contacts rating @R: 2A / 24V DC, IP rating: IP65, Switching method: OFF-(ON); ON-(OFF), Illumination: LED; ring, Backlight colour: blue, Illumination voltage: 2.8V DC, Leads: connectors; for soldering, Leads dimensions: 2.8mm, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Button shape: flat; round, Mounting hole dimensions: Ø19mm, Body colour: black, Manufacturer series: PV4, Actuator colour: black, Button marking: POWER, Min. insulation resistance: 1GΩ, Panel thickness: max. 11mm, Mounting: on panel, Body dimensions: Ø22x30.7mm, Operating temperature: -20...55°C, Key stroke: 2.8mm, Button height: 1.8mm, Contact plating: silver plated, Mechanical durability: 1000000 cycles.
Інші пропозиції PV4F2Y011-341-M26
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
PV4F2Y011-341-M26 | E-Switch |
Description: SWITCH PB DPST-NO/NC 2A 24V |
товару немає в наявності |
Мінімальне замовлення: 40 шт В кошику од. на суму грн. |
 |
PV4F2Y011-341-M26 | E-SWITCH |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST NC + NO; 2A/24VDC; IP65 Type of switch: vandal resistant Number of positions: 2 Stable positions number: 1 Contacts configuration: SPST NC + NO DC contacts rating @R: 2A / 24V DC IP rating: IP65 Switching method: OFF-(ON); ON-(OFF) Illumination: LED; ring Backlight colour: blue Illumination voltage: 2.8V DC Leads: connectors; for soldering Leads dimensions: 2.8mm Electrical life: 50000 cycles Max. contact resistance:: 50mΩ Button shape: flat; round Mounting hole dimensions: Ø19mm Body colour: black Manufacturer series: PV4 Actuator colour: black Button marking: POWER Min. insulation resistance: 1GΩ Panel thickness: max. 11mm Mounting: on panel Body dimensions: Ø22x30.7mm Operating temperature: -20...55°C Key stroke: 2.8mm Button height: 1.8mm Contact plating: silver plated Mechanical durability: 1000000 cycles |
товару немає в наявності |
Мінімальне замовлення: 40 шт В кошику од. на суму грн. |
| PV4F2Y011-341-M26 |
|
Виробник: E-Switch
Description: SWITCH PB DPST-NO/NC 2A 24V
Description: SWITCH PB DPST-NO/NC 2A 24V
товару немає в наявності
Мінімальне замовлення: 40 шт
В кошику
од. на суму грн.
| PV4F2Y011-341-M26 |
|
Виробник: E-SWITCH
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST NC + NO; 2A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST NC + NO
DC contacts rating @R: 2A / 24V DC
IP rating: IP65
Switching method: OFF-(ON); ON-(OFF)
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 2.8V DC
Leads: connectors; for soldering
Leads dimensions: 2.8mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Button shape: flat; round
Mounting hole dimensions: Ø19mm
Body colour: black
Manufacturer series: PV4
Actuator colour: black
Button marking: POWER
Min. insulation resistance: 1GΩ
Panel thickness: max. 11mm
Mounting: on panel
Body dimensions: Ø22x30.7mm
Operating temperature: -20...55°C
Key stroke: 2.8mm
Button height: 1.8mm
Contact plating: silver plated
Mechanical durability: 1000000 cycles
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST NC + NO; 2A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST NC + NO
DC contacts rating @R: 2A / 24V DC
IP rating: IP65
Switching method: OFF-(ON); ON-(OFF)
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 2.8V DC
Leads: connectors; for soldering
Leads dimensions: 2.8mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Button shape: flat; round
Mounting hole dimensions: Ø19mm
Body colour: black
Manufacturer series: PV4
Actuator colour: black
Button marking: POWER
Min. insulation resistance: 1GΩ
Panel thickness: max. 11mm
Mounting: on panel
Body dimensions: Ø22x30.7mm
Operating temperature: -20...55°C
Key stroke: 2.8mm
Button height: 1.8mm
Contact plating: silver plated
Mechanical durability: 1000000 cycles
