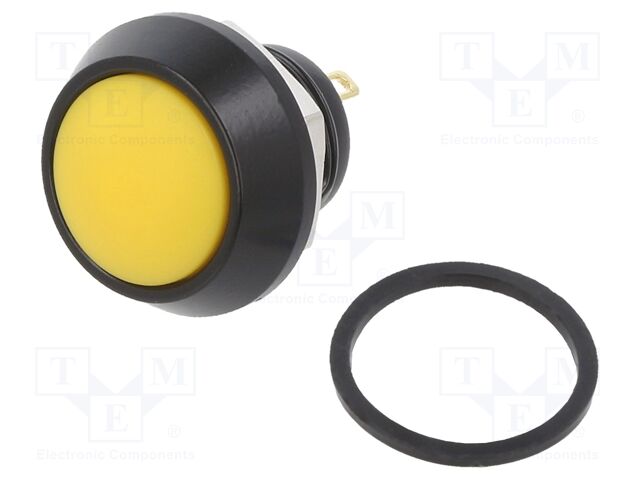

PV5S24016

PV5S24016 E-SWITCH


pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948C9B042F0740D3&compId=PV5S24016.pdf?ci_sign=d74ebeb696e432f9d397c00be8ba2b9ecf4e5f3e Виробник: E-SWITCH
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
IP rating: IP65
Operating temperature: -25...55°C
Electrical life: 200000 cycles
Body material: aluminium anodised
Contact material: silver
Type of switch: vandal resistant
Contacts configuration: SPST-NO
DC contacts rating @R: 2A / 36V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 5N
Illumination: none
Button marking: blank
Actuator colour: yellow
Body colour: black
Key stroke: 2.5mm
Button shape: convex; round
Manufacturer series: PV5
Number of positions: 2
Mounting: on panel
Mechanical durability: 1000000 cycles
Panel thickness: 1...5mm
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
Body dimensions: Ø17.5x14.3mm
Mounting hole diameter: Ø12mm
Leads: for soldering
на замовлення 21 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
2+355.53 грн
4+243.67 грн
11+230.31 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис PV5S24016 E-SWITCH

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON), IP rating: IP65, Operating temperature: -25...55°C, Electrical life: 200000 cycles, Body material: aluminium anodised, Contact material: silver, Type of switch: vandal resistant, Contacts configuration: SPST-NO, DC contacts rating @R: 2A / 36V DC, Switching method: OFF-(ON), Stable positions number: 1, Operating Force: 5N, Illumination: none, Button marking: blank, Actuator colour: yellow, Body colour: black, Key stroke: 2.5mm, Button shape: convex; round, Manufacturer series: PV5, Number of positions: 2, Mounting: on panel, Mechanical durability: 1000000 cycles, Panel thickness: 1...5mm, Max. contact resistance:: 50mΩ, Min. insulation resistance: 1GΩ, Body dimensions: Ø17.5x14.3mm, Mounting hole diameter: Ø12mm, Leads: for soldering, кількість в упаковці: 1 шт.

Інші пропозиції PV5S24016 за ціною від 246.76 грн до 426.98 грн

Фото Назва Виробник Інформація Доступність
Ціна
PV5S24016 PV5S24016 Виробник : E-Switch PV5.pdf Description: SWITCH PUSH SPST-NO 2A 36V
Packaging: Bulk
Current Rating (Amps): 2A (DC)
Mounting Type: Panel Mount, Front
Circuit: SPST-NO
Type: Anti-Vandal
Switch Function: Off-Mom
Operating Temperature: -20°C ~ 70°C
Termination Style: Solder Lug
Actuator Type: Round, Button, Domed
Ingress Protection: IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Circular - 12.00mm Dia
Color - Actuator/Cap: Yellow
Actuator Marking: No Marking
Voltage Rating - DC: 36 V
на замовлення 425 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+424.47 грн
10+352.31 грн
25+332.25 грн
50+298.24 грн
100+285.26 грн
250+268.92 грн
В кошику  од. на суму  грн.
PV5S24016 PV5S24016 Виробник : E-SWITCH pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948C9B042F0740D3&compId=PV5S24016.pdf?ci_sign=d74ebeb696e432f9d397c00be8ba2b9ecf4e5f3e Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
IP rating: IP65
Operating temperature: -25...55°C
Electrical life: 200000 cycles
Body material: aluminium anodised
Contact material: silver
Type of switch: vandal resistant
Contacts configuration: SPST-NO
DC contacts rating @R: 2A / 36V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 5N
Illumination: none
Button marking: blank
Actuator colour: yellow
Body colour: black
Key stroke: 2.5mm
Button shape: convex; round
Manufacturer series: PV5
Number of positions: 2
Mounting: on panel
Mechanical durability: 1000000 cycles
Panel thickness: 1...5mm
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
Body dimensions: Ø17.5x14.3mm
Mounting hole diameter: Ø12mm
Leads: for soldering
кількість в упаковці: 1 шт
на замовлення 21 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+426.64 грн
4+303.66 грн
11+276.37 грн
В кошику  од. на суму  грн.
PV5S24016 PV5S24016 Виробник : E-Switch PV5.pdf Pushbutton Switches 0-2A 48VDC Off (On) 12mm Yellow Domed
на замовлення 99 шт:
термін постачання 112-121 дні (днів)
Кількість Ціна
1+426.98 грн
10+375.76 грн
25+309.39 грн
50+297.31 грн
100+283.73 грн
250+270.90 грн
500+246.76 грн
В кошику  од. на суму  грн.
