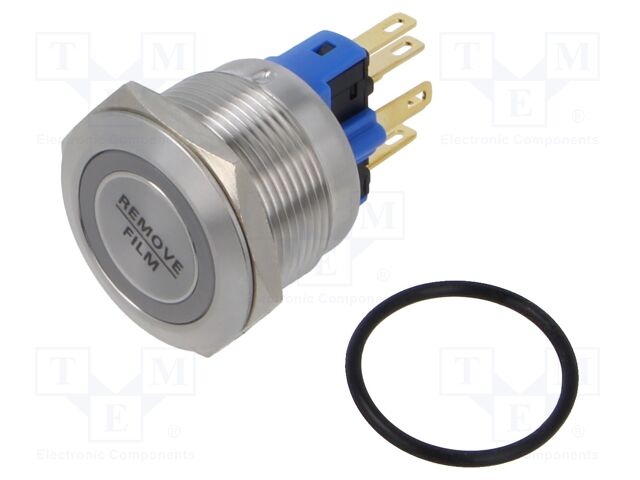

PV7F2Y0SS-315 E-SWITCH
Виробник: E-SWITCH
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 2A/48VDC
Manufacturer series: PV7
Actuator colour: silver
Button marking: blank
Contacts configuration: SPST-NO + SPST-NC
Type of switch: vandal resistant
Button shape: flat; round
Mounting: on panel
Leads: for soldering
IP rating: IP65
Illumination: LED; ring
Body colour: silver
Switching method: OFF-(ON); ON-(OFF)
Body material: stainless steel
Backlight colour: red
Contact plating: silver plated
Button material: stainless steel
Operating temperature: -20...70°C
Key stroke: 2.2mm
Leads dimensions: 2.8x0.5mm
Panel thickness: max. 8mm
Body dimensions: Ø25x27.5mm
Mounting hole dimensions: Ø22mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 2A / 48V DC
Stable positions number: 1
Operating Force: 4N
Number of positions: 2
Illumination voltage: 24V
Electrical life: 50000 cycles
Min. insulation resistance: 1GΩ
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1714.20 грн |
| 10+ | 1460.09 грн |
| 20+ | 1359.45 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
14-30 дні (днів)
Відгуки про товар
Написати відгук
Технічний опис PV7F2Y0SS-315 E-SWITCH
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 2A/48VDC, Manufacturer series: PV7, Actuator colour: silver, Button marking: blank, Contacts configuration: SPST-NO + SPST-NC, Type of switch: vandal resistant, Button shape: flat; round, Mounting: on panel, Leads: for soldering, IP rating: IP65, Illumination: LED; ring, Body colour: silver, Switching method: OFF-(ON); ON-(OFF), Body material: stainless steel, Backlight colour: red, Contact plating: silver plated, Button material: stainless steel, Operating temperature: -20...70°C, Key stroke: 2.2mm, Leads dimensions: 2.8x0.5mm, Panel thickness: max. 8mm, Body dimensions: Ø25x27.5mm, Mounting hole dimensions: Ø22mm, Max. contact resistance:: 50mΩ, DC contacts rating @R: 2A / 48V DC, Stable positions number: 1, Operating Force: 4N, Number of positions: 2, Illumination voltage: 24V, Electrical life: 50000 cycles, Min. insulation resistance: 1GΩ.
Інші пропозиції PV7F2Y0SS-315 за ціною від 1263.40 грн до 1879.59 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PV7F2Y0SS-315 | E-Switch |
Description: SWITCH PUSHBUTTON SPDT 2A 48V Packaging: Bulk Current Rating (Amps): 2A (DC) Mounting Type: Panel Mount, Front Circuit: SPDT Type: Anti-Vandal, Illuminated Switch Function: On-Mom, Off-Mom Operating Temperature: -20°C ~ 55°C Termination Style: Solder, Quick Connect - 0.110" (2.8mm) Illumination Type, Color: LED, Red Illumination Voltage (Nominal): 24 VDC Actuator Type: Round, Button, Flush Ingress Protection: IP65 - Dust Tight, Water Resistant Panel Cutout Dimensions: Circular - 22.00mm Dia Color - Actuator/Cap: Silver Actuator Marking: No Marking Part Status: Active Voltage Rating - DC: 48 V |
на замовлення 121 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
PV7F2Y0SS-315 | E-Switch |
Pushbutton Switches - Industrial Illuminated, Sealed Anti-vandal switch |
на замовлення 20 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| PV7F2Y0SS-315 |
|
Виробник: E-Switch
Description: SWITCH PUSHBUTTON SPDT 2A 48V
Packaging: Bulk
Current Rating (Amps): 2A (DC)
Mounting Type: Panel Mount, Front
Circuit: SPDT
Type: Anti-Vandal, Illuminated
Switch Function: On-Mom, Off-Mom
Operating Temperature: -20°C ~ 55°C
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color: LED, Red
Illumination Voltage (Nominal): 24 VDC
Actuator Type: Round, Button, Flush
Ingress Protection: IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Circular - 22.00mm Dia
Color - Actuator/Cap: Silver
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - DC: 48 V
Description: SWITCH PUSHBUTTON SPDT 2A 48V
Packaging: Bulk
Current Rating (Amps): 2A (DC)
Mounting Type: Panel Mount, Front
Circuit: SPDT
Type: Anti-Vandal, Illuminated
Switch Function: On-Mom, Off-Mom
Operating Temperature: -20°C ~ 55°C
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color: LED, Red
Illumination Voltage (Nominal): 24 VDC
Actuator Type: Round, Button, Flush
Ingress Protection: IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Circular - 22.00mm Dia
Color - Actuator/Cap: Silver
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - DC: 48 V
на замовлення 121 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1879.59 грн |
| 20+ | 1493.42 грн |
| 40+ | 1428.24 грн |
| 60+ | 1305.77 грн |
| 100+ | 1263.40 грн |
| PV7F2Y0SS-315 |
|
Виробник: E-Switch
Pushbutton Switches - Industrial Illuminated, Sealed Anti-vandal switch
Pushbutton Switches - Industrial Illuminated, Sealed Anti-vandal switch
на замовлення 20 шт:
термін постачання 21-30 дні (днів)
