PVA6REW4131 E-Switch

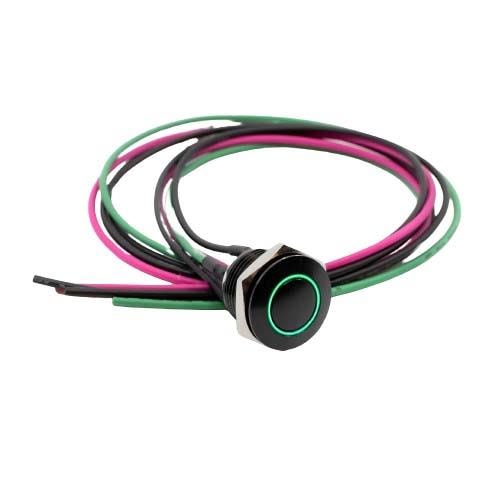

Виробник: E-SwitchPushbutton Switches Anti-vandal, SPST, Off-(On), Panel Mount, Front, Black, LED, Green, IP67
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис PVA6REW4131 E-Switch
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP67; OFF-(ON), Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST-NO, DC contacts rating @R: 2A / 36V DC, IP rating: IP67, Switching method: OFF-(ON), Illumination: LED; ring, Backlight colour: green, Illumination voltage: 2.8V DC, Leads: cables, Lead length: 0.5m, Electrical life: 200000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4.6N, Mechanical durability: 1000000 cycles, Button shape: round, Mounting hole diameter: Ø16mm, Body colour: black, Manufacturer series: PVA6, Contact plating: silver plated, Actuator colour: black, Button marking: blank, Min. insulation resistance: 1GΩ, Panel thickness: 1...8mm, Mounting: on panel, Body dimensions: Ø18.5x16mm, Button height: 2.2mm, Key stroke: 2mm, Operating temperature: -20...70°C.
Інші пропозиції PVA6REW4131
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| PVA6REW4131 | Виробник : E-SWITCH |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP67; OFF-(ON) Type of switch: vandal resistant Number of positions: 2 Stable positions number: 1 Contacts configuration: SPST-NO DC contacts rating @R: 2A / 36V DC IP rating: IP67 Switching method: OFF-(ON) Illumination: LED; ring Backlight colour: green Illumination voltage: 2.8V DC Leads: cables Lead length: 0.5m Electrical life: 200000 cycles Max. contact resistance:: 50mΩ Operating Force: 4.6N Mechanical durability: 1000000 cycles Button shape: round Mounting hole diameter: Ø16mm Body colour: black Manufacturer series: PVA6 Contact plating: silver plated Actuator colour: black Button marking: blank Min. insulation resistance: 1GΩ Panel thickness: 1...8mm Mounting: on panel Body dimensions: Ø18.5x16mm Button height: 2.2mm Key stroke: 2mm Operating temperature: -20...70°C |
товару немає в наявності |
