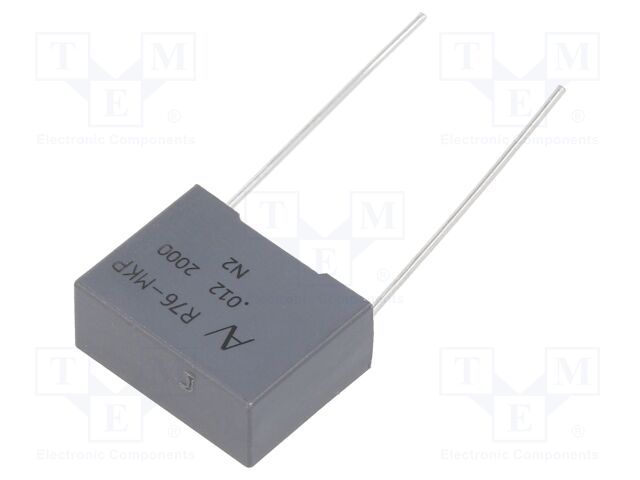

R76UI21205050J KEMET
Виробник: KEMET
Description: KEMET - R76UI21205050J - Leistungs-Folienkondensator, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 0.012 µF, ± 5%
tariffCode: 85322500
Betriebstemperatur, max.: 110°C
Anschlussabstand: 15mm
Ausgang (kvar): -
productTraceability: Yes-Date/Lot Code
Betriebstemperatur, min.: -55°C
Produktlänge: 18mm
Produkthöhe: 13.5mm
Spannung (AC): 700V
Kapazitätstoleranz: ± 5%
hazardous: false
Kapazität: 0.012µF
Typische Anwendungen: Hochfrequenz
Feuchtigkeitsklasse: GRADE II (Testbedingung A)
Produktpalette: R76 Series
usEccn: EAR99
Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins
Dielektrikum: Doppelt metallisiertes PP
Kondensatormontage: Durchsteckmontage
rohsCompliant: YES
SVHC: No SVHC (04-Feb-2026)
Kondensatoranschlüsse: Radial bedrahtet
dv/dt: 9.5kV/µs
Produktdurchmesser: -
Qualifikation: AEC-Q200
Spannung (DC): 2kV
Produktbreite: 7.5mm
Äquivalenter Serienwiderstand (ESR): 0.0531ohm
RMS-Strom Irms: 2.7A
Rippelstrom: -
Spitzenstrom: 114A
rohsPhthalatesCompliant: YES
isCanonical: Y
euEccn: NLR
Відгуки про товар
Написати відгук
Технічний опис R76UI21205050J KEMET
Description: KEMET - R76UI21205050J - Leistungs-Folienkondensator, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 0.012 µF, ± 5%, tariffCode: 85322500, Betriebstemperatur, max.: 110°C, Anschlussabstand: 15mm, Ausgang (kvar): -, productTraceability: Yes-Date/Lot Code, Betriebstemperatur, min.: -55°C, Produktlänge: 18mm, Produkthöhe: 13.5mm, Spannung (AC): 700V, Kapazitätstoleranz: ± 5%, hazardous: false, Kapazität: 0.012µF, Typische Anwendungen: Hochfrequenz, Feuchtigkeitsklasse: GRADE II (Testbedingung A), Produktpalette: R76 Series, usEccn: EAR99, Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins, Dielektrikum: Doppelt metallisiertes PP, Kondensatormontage: Durchsteckmontage, rohsCompliant: YES, SVHC: No SVHC (04-Feb-2026), Kondensatoranschlüsse: Radial bedrahtet, dv/dt: 9.5kV/µs, Produktdurchmesser: -, Qualifikation: AEC-Q200, Spannung (DC): 2kV, Produktbreite: 7.5mm, Äquivalenter Serienwiderstand (ESR): 0.0531ohm, RMS-Strom Irms: 2.7A, Rippelstrom: -, Spitzenstrom: 114A, rohsPhthalatesCompliant: YES, isCanonical: Y, euEccn: NLR.
Інші пропозиції R76UI21205050J за ціною від 10.85 грн до 44.89 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R76UI21205050J | KEMET |
Description: FILM, RADIAL, PULSE, DOUBLE META Size / Dimension: 0.709" L x 0.295" W (18.00mm x 7.50mm) ESR (Equivalent Series Resistance): 53.1 mOhms Capacitance: 0.012 µF Height - Seated (Max): 0.535" (13.60mm) Voltage Rating - DC: 2000V (2kV) Voltage Rating - AC: 700V Dielectric Material: Polypropylene (PP), Metallized Ratings: AEC-Q200 Termination: PC Pins Lead Spacing: 0.591" (15.00mm) Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT Operating Temperature: -55°C ~ 110°C Mounting Type: Through Hole Package / Case: Radial Tolerance: ±5% Packaging: Bulk |
на замовлення 3611 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
R76UI21205050J | KEMET |
Category: THT Film Capacitors Description: Capacitor: polypropylene; 0.012uF; 2kVDC; 700VAC; 2.727A; THT; R76 Type of capacitor: polypropylene Capacitance: 12nF Operating voltage: 700V AC; 2kV DC Tolerance: ±5% Mounting: THT Operating temperature: -55...110°C Terminal pitch: 15mm Body dimensions: 18x13.5x7.5mm Lead length: 25mm ESR value: 53.05mΩ Max. operating current: 2.727A Pulse resistance: 9.5kV/μs Climate class: 55/105/56; IEC 60068-1 Manufacturer series: R76 Kind of material: flame retardant Flammability rating: UL94V-0 |
на замовлення 93 шт: термін постачання 14-30 дні (днів) |
|
||||||||||||
 |
R76UI21205050J | KEMET |
Film Capacitors 2k V 0.012 uF 110C 5% 2 Pin LS=15 mm AEC-Q200 |
на замовлення 1992 шт: термін постачання 21-30 дні (днів) |
|
| R76UI21205050J |
|
Виробник: KEMET
Description: FILM, RADIAL, PULSE, DOUBLE META
Size / Dimension: 0.709" L x 0.295" W (18.00mm x 7.50mm)
ESR (Equivalent Series Resistance): 53.1 mOhms
Capacitance: 0.012 µF
Height - Seated (Max): 0.535" (13.60mm)
Voltage Rating - DC: 2000V (2kV)
Voltage Rating - AC: 700V
Dielectric Material: Polypropylene (PP), Metallized
Ratings: AEC-Q200
Termination: PC Pins
Lead Spacing: 0.591" (15.00mm)
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Operating Temperature: -55°C ~ 110°C
Mounting Type: Through Hole
Package / Case: Radial
Tolerance: ±5%
Packaging: Bulk
Description: FILM, RADIAL, PULSE, DOUBLE META
Size / Dimension: 0.709" L x 0.295" W (18.00mm x 7.50mm)
ESR (Equivalent Series Resistance): 53.1 mOhms
Capacitance: 0.012 µF
Height - Seated (Max): 0.535" (13.60mm)
Voltage Rating - DC: 2000V (2kV)
Voltage Rating - AC: 700V
Dielectric Material: Polypropylene (PP), Metallized
Ratings: AEC-Q200
Termination: PC Pins
Lead Spacing: 0.591" (15.00mm)
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Operating Temperature: -55°C ~ 110°C
Mounting Type: Through Hole
Package / Case: Radial
Tolerance: ±5%
Packaging: Bulk
на замовлення 3611 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 10+ | 32.99 грн |
| 14+ | 21.86 грн |
| 50+ | 18.38 грн |
| 100+ | 14.04 грн |
| 700+ | 11.71 грн |
| 1400+ | 10.85 грн |
| R76UI21205050J |
|
Виробник: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 0.012uF; 2kVDC; 700VAC; 2.727A; THT; R76
Type of capacitor: polypropylene
Capacitance: 12nF
Operating voltage: 700V AC; 2kV DC
Tolerance: ±5%
Mounting: THT
Operating temperature: -55...110°C
Terminal pitch: 15mm
Body dimensions: 18x13.5x7.5mm
Lead length: 25mm
ESR value: 53.05mΩ
Max. operating current: 2.727A
Pulse resistance: 9.5kV/μs
Climate class: 55/105/56; IEC 60068-1
Manufacturer series: R76
Kind of material: flame retardant
Flammability rating: UL94V-0
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 0.012uF; 2kVDC; 700VAC; 2.727A; THT; R76
Type of capacitor: polypropylene
Capacitance: 12nF
Operating voltage: 700V AC; 2kV DC
Tolerance: ±5%
Mounting: THT
Operating temperature: -55...110°C
Terminal pitch: 15mm
Body dimensions: 18x13.5x7.5mm
Lead length: 25mm
ESR value: 53.05mΩ
Max. operating current: 2.727A
Pulse resistance: 9.5kV/μs
Climate class: 55/105/56; IEC 60068-1
Manufacturer series: R76
Kind of material: flame retardant
Flammability rating: UL94V-0
на замовлення 93 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 13+ | 35.66 грн |
| 15+ | 28.75 грн |
| 50+ | 20.68 грн |
| R76UI21205050J |
|
Виробник: KEMET
Film Capacitors 2k V 0.012 uF 110C 5% 2 Pin LS=15 mm AEC-Q200
Film Capacitors 2k V 0.012 uF 110C 5% 2 Pin LS=15 mm AEC-Q200
на замовлення 1992 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 8+ | 44.89 грн |
| 16+ | 20.16 грн |
| 100+ | 15.36 грн |
| 500+ | 12.29 грн |
| 700+ | 11.45 грн |
