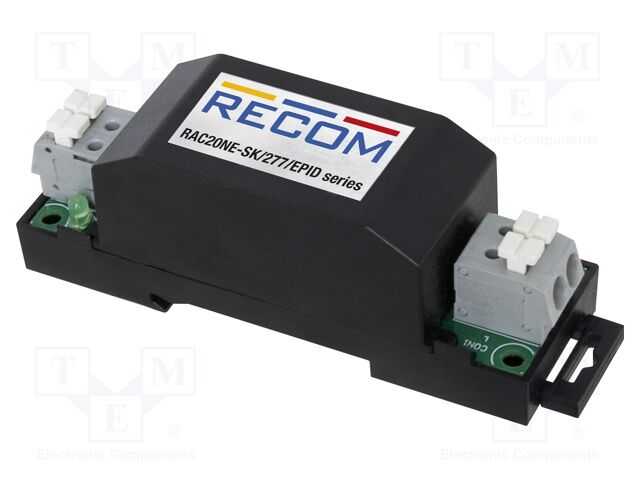

RAC20NE-24SK/277/EPID Recom Power
Виробник: Recom Power
Description: 20W AC/DC-CONVERTER 'POWERLINE'
Packaging: Box
Power (Watts): 20W
Features: IP40, Universal Input
Size / Dimension: 3.27" L x 1.04" W x 1.16" H (83.0mm x 26.4mm x 29.5mm)
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: Household Appliances, ITE (Commercial)
Input Type: AC
Approval Agency: CB, CE, cURus, IEC, UL
Efficiency: 87%
Current - Output (Max): 833mA
Voltage - Output 1: 24V
Number of Outputs: 1
Voltage - Isolation: 4.2 kV
Standard Number: 60335-1; 62368-1
AC Voltage - Input: 85 ~ 305 VAC
Description: 20W AC/DC-CONVERTER 'POWERLINE'
Packaging: Box
Power (Watts): 20W
Features: IP40, Universal Input
Size / Dimension: 3.27" L x 1.04" W x 1.16" H (83.0mm x 26.4mm x 29.5mm)
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: Household Appliances, ITE (Commercial)
Input Type: AC
Approval Agency: CB, CE, cURus, IEC, UL
Efficiency: 87%
Current - Output (Max): 833mA
Voltage - Output 1: 24V
Number of Outputs: 1
Voltage - Isolation: 4.2 kV
Standard Number: 60335-1; 62368-1
AC Voltage - Input: 85 ~ 305 VAC
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис RAC20NE-24SK/277/EPID Recom Power
Category: Din Rail Mounting Power Supplies, Description: Power supply: switching; for DIN rail; 20W; 24VDC; 833mA; IP40, Mounting: for DIN rail mounting; screw type, IP rating: IP40, Additional functions: power boost, Electrical connection: push-in terminals, Caution!: rated parameters obtained at full load, Type of power supply: switching, Operating temperature: -40...55°C, Body dimensions: 83x26.4x29.5mm, Output current: 0.833A, Output voltage: 24V DC, Supply voltage: 85...305V AC, Power: 20W, Efficiency: 87%, Protection: anti-overvoltage OVP; over current OCP; overheating OTP; short circuit protection SCP, Insulation voltage: 4.2kV; 6kV DC, Kind of power supply: for DIN rail.
Інші пропозиції RAC20NE-24SK/277/EPID
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
RAC20NE-24SK/277/EPID | Виробник : RECOM |
 Category: Din Rail Mounting Power SuppliesDescription: Power supply: switching; for DIN rail; 20W; 24VDC; 833mA; IP40 Mounting: for DIN rail mounting; screw type IP rating: IP40 Additional functions: power boost Electrical connection: push-in terminals Caution!: rated parameters obtained at full load Type of power supply: switching Operating temperature: -40...55°C Body dimensions: 83x26.4x29.5mm Output current: 0.833A Output voltage: 24V DC Supply voltage: 85...305V AC Power: 20W Efficiency: 87% Protection: anti-overvoltage OVP; over current OCP; overheating OTP; short circuit protection SCP Insulation voltage: 4.2kV; 6kV DC Kind of power supply: for DIN rail |
товару немає в наявності |
