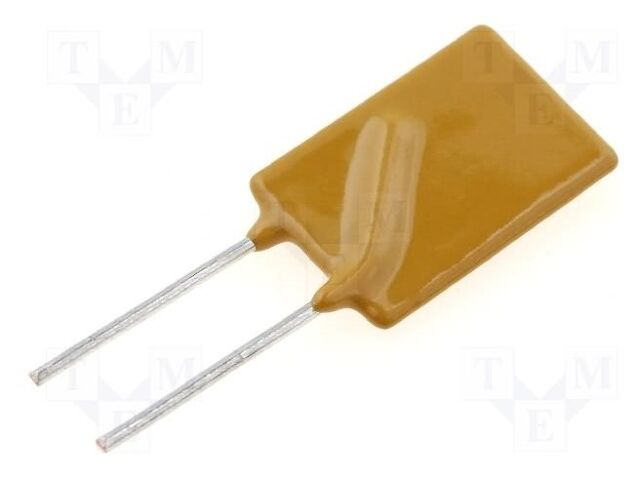

RB900-30 ECE
Виробник: ECECategory: THT Polymer Fuses
Description: Fuse: PTC polymer; 9A; 24.1x29.7mm; THT; 10.2mm; Ø0.81x7.6mm
Mounting: THT
Operating temperature: -40...85°C
Type of fuse: PTC polymer
Leads dimensions: Ø0.81x7.6mm
F dimension: 1.2mm
E dimension: 3mm
Min. resistance: 5mΩ
D dimension: 7.6mm
Terminal pitch: 10.2mm
C dimension: 10.2mm
Max resistance: 20mΩ
A dimension: 24.1mm
Fuse size: 24.1x29.7mm
B dimension: 29.7mm
Power: 4.2W
Current rating: 9A
Switched current: 18A
Max. voltage: 30V DC
Max surge current: 40A
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис RB900-30 ECE
Category: THT Polymer Fuses, Description: Fuse: PTC polymer; 9A; 24.1x29.7mm; THT; 10.2mm; Ø0.81x7.6mm, Mounting: THT, Operating temperature: -40...85°C, Type of fuse: PTC polymer, Leads dimensions: Ø0.81x7.6mm, F dimension: 1.2mm, E dimension: 3mm, Min. resistance: 5mΩ, D dimension: 7.6mm, Terminal pitch: 10.2mm, C dimension: 10.2mm, Max resistance: 20mΩ, A dimension: 24.1mm, Fuse size: 24.1x29.7mm, B dimension: 29.7mm, Power: 4.2W, Current rating: 9A, Switched current: 18A, Max. voltage: 30V DC, Max surge current: 40A, кількість в упаковці: 1 шт.
