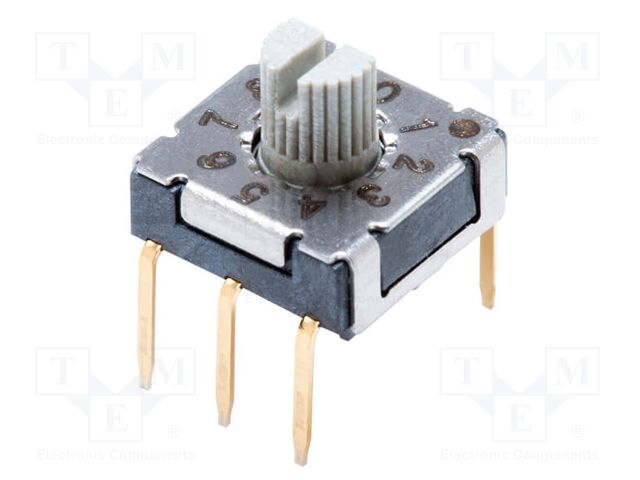

RDS-10S-7229-S-D Same Sky
Виробник: Same Sky
Description: SWITCH ROTARY DIP BCD 0.1A 50V
Features: IP67 - Dust Tight, Waterproof
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 50VDC
Current Rating (Amps): 100mA
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm), Full
Circuit: BCD
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Rotary with Shaft
Height Above Board: 0.232" (5.90mm)
Actuator Level: Raised
Washable: No
Contact Material: Copper Alloy
Part Status: Active
Number of Positions: 10
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 132.05 грн |
| 10+ | 119.91 грн |
| 70+ | 101.21 грн |
| 140+ | 88.65 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
21-31 дні (днів)
Мінімальна партія:
3 шт
Відгуки про товар
Написати відгук
Технічний опис RDS-10S-7229-S-D Same Sky
Category: Encoding Switches, Description: Rotary Coded Switch: DEC/BCD; Pos: 10; THT; Rcont max: 100mΩ; LCP, DC contacts rating @R: 0.1A / 50V DC, Operating temperature: -40...85°C, Switches features: with knob, Leads: for PCB, Terminals plating: gold-plated, Body material: LCP, Body dimensions: 7.2x7.2x2.9mm, Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 100mΩ, Number of positions: 10, Row pitch: 7.62mm, IP rating: IP67, Terminal pitch: 2.54mm, Mounting: THT, Type of rotary coded switch: DEC/BCD, Flammability rating: UL94V-0.
Інші пропозиції RDS-10S-7229-S-D
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
|
RDS-10S-7229-S-D | Same Sky® |
Category: Encoding SwitchesDescription: Rotary Coded Switch: DEC/BCD; Pos: 10; THT; Rcont max: 100mΩ; LCP DC contacts rating @R: 0.1A / 50V DC Operating temperature: -40...85°C Switches features: with knob Leads: for PCB Terminals plating: gold-plated Body material: LCP Body dimensions: 7.2x7.2x2.9mm Min. insulation resistance: 0.1GΩ Max. contact resistance:: 100mΩ Number of positions: 10 Row pitch: 7.62mm IP rating: IP67 Terminal pitch: 2.54mm Mounting: THT Type of rotary coded switch: DEC/BCD Flammability rating: UL94V-0 |
товару немає в наявності |
Мінімальне замовлення: 490 шт В кошику од. на суму грн. |
| RDS-10S-7229-S-D |
![]() |
Виробник: Same Sky®
Category: Encoding Switches
Description: Rotary Coded Switch: DEC/BCD; Pos: 10; THT; Rcont max: 100mΩ; LCP
DC contacts rating @R: 0.1A / 50V DC
Operating temperature: -40...85°C
Switches features: with knob
Leads: for PCB
Terminals plating: gold-plated
Body material: LCP
Body dimensions: 7.2x7.2x2.9mm
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 100mΩ
Number of positions: 10
Row pitch: 7.62mm
IP rating: IP67
Terminal pitch: 2.54mm
Mounting: THT
Type of rotary coded switch: DEC/BCD
Flammability rating: UL94V-0
