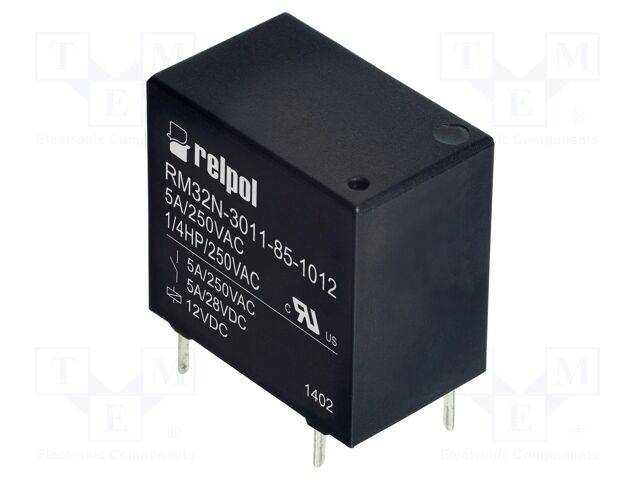

RM32N-3011-85-1012 RELPOL
Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A; 5A/250VAC; 5A/28VDC
Manufacturer series: RM32N
Contacts configuration: SPDT
Operating temperature: -40...70°C
Terminal pitch: 7.62mm
Release time: 5ms
Operate time: 8ms
Body dimensions: 18.8x10.6x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 200mW
Contact current max.: 5A
DC contacts rating @R: 5A / 28V DC
AC contacts rating @R: 5A / 250V AC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Coil voltage max.: 15.6V DC
Switched voltage: max. 28V DC; max. 277V AC
Coil resistance: 320Ω
Electrical life: 100000 cycles
OEM number: 2615029
Mechanical durability: 100000000 cycles
Contact material: AgSnO2
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
IP rating: IP64
| Кількість | Ціна |
|---|---|
| 3+ | 196.58 грн |
| 5+ | 175.81 грн |
| 25+ | 160.66 грн |
| 100+ | 146.36 грн |
Відгуки про товар
Написати відгук
Технічний опис RM32N-3011-85-1012 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A; 5A/250VAC; 5A/28VDC, Manufacturer series: RM32N, Contacts configuration: SPDT, Operating temperature: -40...70°C, Terminal pitch: 7.62mm, Release time: 5ms, Operate time: 8ms, Body dimensions: 18.8x10.6x15.3mm, Contact resistance: 100mΩ, Coil power consumption: 200mW, Contact current max.: 5A, DC contacts rating @R: 5A / 28V DC, AC contacts rating @R: 5A / 250V AC, Coil voltage min.: 9V DC, Rated coil voltage: 12V DC, Coil voltage max.: 15.6V DC, Switched voltage: max. 28V DC; max. 277V AC, Coil resistance: 320Ω, Electrical life: 100000 cycles, OEM number: 2615029, Mechanical durability: 100000000 cycles, Contact material: AgSnO2, Type of relay: electromagnetic, Mounting: PCB, Relay variant: miniature, IP rating: IP64.
