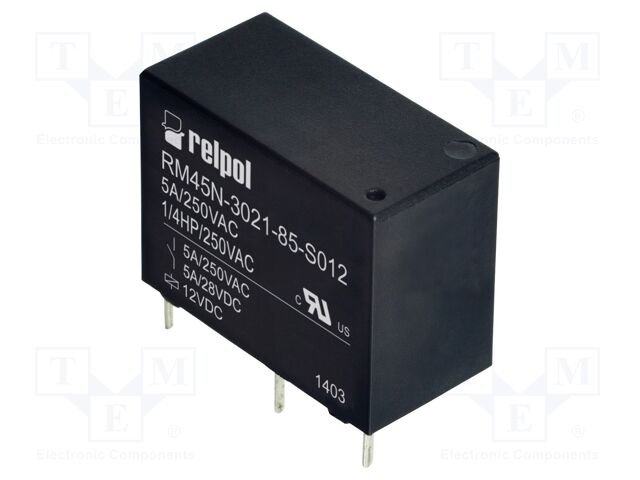

RM45N-3021-85-S012 RELPOL
Виробник: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; RM45N
Type of relay: electromagnetic
IP rating: IP64
Relay variant: miniature; sensitive
Mounting: PCB
Manufacturer series: RM45N
Contacts configuration: SPST-NO
Operating temperature: -40...70°C
Terminal pitch: 7.62mm
Release time: 5ms
Operate time: 8ms
Body dimensions: 20.5x10.6x15.6mm
Contact resistance: 100mΩ
Coil power consumption: 200mW
Coil voltage min.: 9V DC
Contact current max.: 5A
Rated coil voltage: 12V DC
DC contacts rating @R: 5A / 28V DC
AC contacts rating @R: 5A / 250V AC
Coil voltage max.: 13.2V DC
Switched voltage: max. 28V DC; max. 277V AC
Coil resistance: 720Ω
Electrical life: 100000 cycles
Mechanical durability: 100000000 cycles
OEM number: 2614933
Contact material: AgSnO2
на замовлення 157 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 168.77 грн |
| 5+ | 142.39 грн |
| 10+ | 103.41 грн |
| 26+ | 97.85 грн |
Відгуки про товар
Написати відгук
Технічний опис RM45N-3021-85-S012 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; RM45N, Type of relay: electromagnetic, IP rating: IP64, Relay variant: miniature; sensitive, Mounting: PCB, Manufacturer series: RM45N, Contacts configuration: SPST-NO, Operating temperature: -40...70°C, Terminal pitch: 7.62mm, Release time: 5ms, Operate time: 8ms, Body dimensions: 20.5x10.6x15.6mm, Contact resistance: 100mΩ, Coil power consumption: 200mW, Coil voltage min.: 9V DC, Contact current max.: 5A, Rated coil voltage: 12V DC, DC contacts rating @R: 5A / 28V DC, AC contacts rating @R: 5A / 250V AC, Coil voltage max.: 13.2V DC, Switched voltage: max. 28V DC; max. 277V AC, Coil resistance: 720Ω, Electrical life: 100000 cycles, Mechanical durability: 100000000 cycles, OEM number: 2614933, Contact material: AgSnO2, кількість в упаковці: 1 шт.
