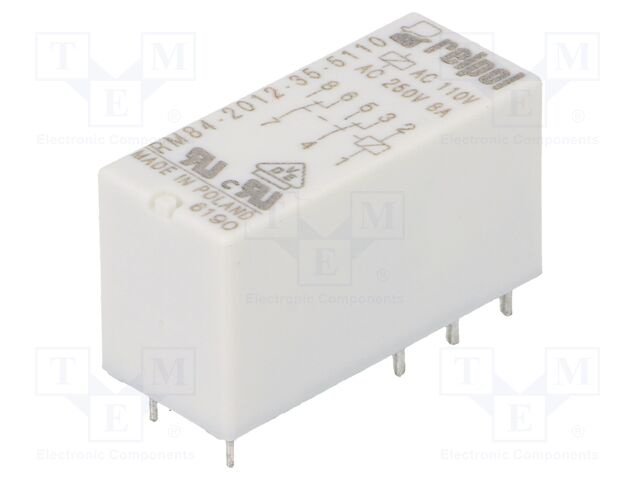

RM84-2012-35-5110

Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 110VAC; 8A; 8A/250VAC; RM84
Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80
OEM number: 604618
IP rating: IP67
Contact resistance: 100mΩ
Type of relay: electromagnetic
Terminal pitch: 5mm
Mounting: PCB
Coil resistance: 8.9kΩ
Coil voltage min.: 88V AC
Contact material: AgNi
Manufacturer series: RM84
Contact current max.: 8A
Number of pins: 8
Relay variant: miniature
Mechanical durability: 30000000 cycles
DC contacts rating @R: 8A / 24V DC
Coil power consumption: 0.75VA
AC contacts rating @R: 8A / 250V AC
Body dimensions: 29x12.7x15.7mm
Operating temperature: -40...85°C
Contacts configuration: DPDT
Body colour: white
Operate time: 7ms
Switched voltage: max. 250V DC; max. 440V AC
Coil voltage max.: 132V AC
Release time: 3ms
Height: 15.7mm
Rated coil voltage: 110V AC

Виробник: RELPOL S.A.
Power Relay 110VAC DPDT(29x12.7x15.7)mm THT

Виробник: Altech Corporation
Description: RELAY GEN PURPOSE DPDT 8A 110V
Packaging: Bulk
Mounting Type: Through Hole
Coil Voltage: 110VAC
Operating Temperature: -40°C ~ 70°C
Termination Style: PC Pin
Approval Agency: CCC, CE, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 12.4 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Nickel (AgNi)
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 8 A
Switching Voltage: 440VAC - Max
Must Operate Voltage: 88 VAC
Operate Time: 7 ms
Release Time: 3 ms
Part Status: Active
Load - Max Switching: 3520VA
