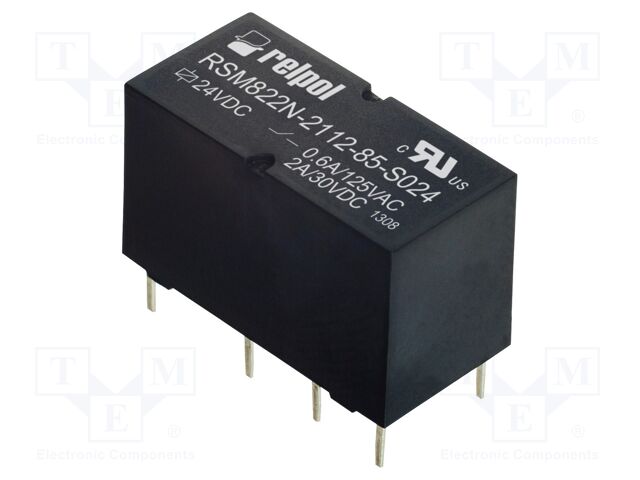

RSM822N-2112-85-S024 RELPOL
Виробник: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.6A/125VAC; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.6A / 125V AC
DC contacts rating @R: 2A / 30V DC
Manufacturer series: RSM822N
Switched voltage: max. 30V DC; max. 250V AC
Relay variant: sensitive; subminiature
Mounting: PCB
Coil resistance: 2.88kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 52.9V DC
Body dimensions: 20.5x10.2x12.5mm
Coil power consumption: 200mW
Terminal pitch: 5mm
Operating temperature: -30...80°C
Release time: 1.5ms
Operate time: 4.5ms
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 1000000000 cycles
OEM number: 2614642
Contact material: AgNi/Au 0,2μm
IP rating: IP64
на замовлення 809 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 200.67 грн |
| 5+ | 169.70 грн |
| 20+ | 152.23 грн |
| 100+ | 123.11 грн |
| 500+ | 116.46 грн |
Відгуки про товар
Написати відгук
Технічний опис RSM822N-2112-85-S024 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.6A/125VAC; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 24V DC, Contact current max.: 2A, AC contacts rating @R: 0.6A / 125V AC, DC contacts rating @R: 2A / 30V DC, Manufacturer series: RSM822N, Switched voltage: max. 30V DC; max. 250V AC, Relay variant: sensitive; subminiature, Mounting: PCB, Coil resistance: 2.88kΩ, Coil voltage min.: 16.8V DC, Coil voltage max.: 52.9V DC, Body dimensions: 20.5x10.2x12.5mm, Coil power consumption: 200mW, Terminal pitch: 5mm, Operating temperature: -30...80°C, Release time: 1.5ms, Operate time: 4.5ms, Contact resistance: 100mΩ, Electrical life: 100000 cycles, Mechanical durability: 1000000000 cycles, OEM number: 2614642, Contact material: AgNi/Au 0,2μm, IP rating: IP64, кількість в упаковці: 1 шт.
Інші пропозиції RSM822N-2112-85-S024 за ціною від 139.75 грн до 240.80 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RSM822N-2112-85-S024 | Виробник : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.6A/125VAC; PCB Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 2A AC contacts rating @R: 0.6A / 125V AC DC contacts rating @R: 2A / 30V DC Manufacturer series: RSM822N Switched voltage: max. 30V DC; max. 250V AC Relay variant: sensitive; subminiature Mounting: PCB Coil resistance: 2.88kΩ Coil voltage min.: 16.8V DC Coil voltage max.: 52.9V DC Body dimensions: 20.5x10.2x12.5mm Coil power consumption: 200mW Terminal pitch: 5mm Operating temperature: -30...80°C Release time: 1.5ms Operate time: 4.5ms Contact resistance: 100mΩ Electrical life: 100000 cycles Mechanical durability: 1000000000 cycles OEM number: 2614642 Contact material: AgNi/Au 0,2μm IP rating: IP64 кількість в упаковці: 1 шт |
на замовлення 809 шт: термін постачання 7-14 дні (днів) |
|
||||||||||||
| RSM822N-2112-85-S024 | Виробник : RELPOL S.A. | RSM822N-2112-85-S024 |
на замовлення 1344 шт: термін постачання 21-31 дні (днів) |
|
