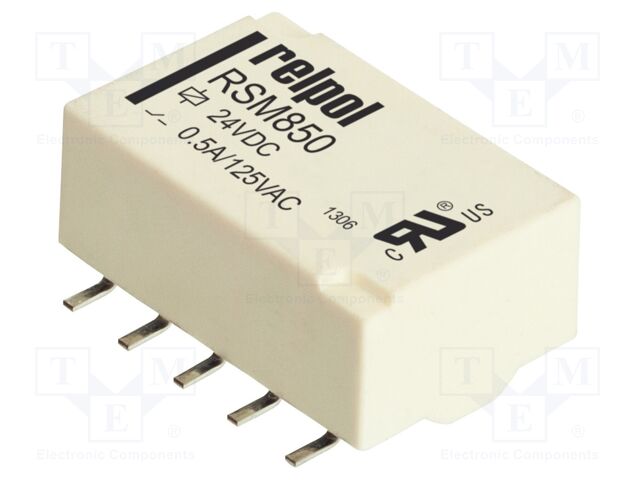

Технічний опис RSM850-6112-8M-1024 RELPOL S.A.
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; RSM850, Operating temperature: -40...85°C, Manufacturer series: RSM850, Type of relay: electromagnetic, Terminal pitch: 2.54mm, Mounting: SMD, Coil resistance: 2.88kΩ, Coil voltage min.: 18V DC, Contact material: AgPd/Au 0,2μm, Contact current max.: 2A, Relay variant: monostable; subminiature, Mechanical durability: 1000000000 cycles, DC contacts rating @R: 2A / 30V DC, Coil power consumption: 140mW, AC contacts rating @R: 0.5A / 125V AC, Body dimensions: 14.3x9.3x5.4mm, Contacts configuration: DPDT, Operate time: 3ms, OEM number: 2611721, Switched voltage: max. 30V DC; max. 250V AC, Coil voltage max.: 48V DC, Electrical life: 100000 cycles, Release time: 3ms, Rated coil voltage: 24V DC, IP rating: IP64, Contact resistance: 50mΩ.
Інші пропозиції RSM850-6112-8M-1024
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
RSM850-6112-8M-1024 | RELPOL |
 Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; RSM850 Operating temperature: -40...85°C Manufacturer series: RSM850 Type of relay: electromagnetic Terminal pitch: 2.54mm Mounting: SMD Coil resistance: 2.88kΩ Coil voltage min.: 18V DC Contact material: AgPd/Au 0,2μm Contact current max.: 2A Relay variant: monostable; subminiature Mechanical durability: 1000000000 cycles DC contacts rating @R: 2A / 30V DC Coil power consumption: 140mW AC contacts rating @R: 0.5A / 125V AC Body dimensions: 14.3x9.3x5.4mm Contacts configuration: DPDT Operate time: 3ms OEM number: 2611721 Switched voltage: max. 30V DC; max. 250V AC Coil voltage max.: 48V DC Electrical life: 100000 cycles Release time: 3ms Rated coil voltage: 24V DC IP rating: IP64 Contact resistance: 50mΩ |
товару немає в наявності |
В кошику од. на суму грн. |
| RSM850-6112-8M-1024 |
|
Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; RSM850
Operating temperature: -40...85°C
Manufacturer series: RSM850
Type of relay: electromagnetic
Terminal pitch: 2.54mm
Mounting: SMD
Coil resistance: 2.88kΩ
Coil voltage min.: 18V DC
Contact material: AgPd/Au 0,2μm
Contact current max.: 2A
Relay variant: monostable; subminiature
Mechanical durability: 1000000000 cycles
DC contacts rating @R: 2A / 30V DC
Coil power consumption: 140mW
AC contacts rating @R: 0.5A / 125V AC
Body dimensions: 14.3x9.3x5.4mm
Contacts configuration: DPDT
Operate time: 3ms
OEM number: 2611721
Switched voltage: max. 30V DC; max. 250V AC
Coil voltage max.: 48V DC
Electrical life: 100000 cycles
Release time: 3ms
Rated coil voltage: 24V DC
IP rating: IP64
Contact resistance: 50mΩ
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; RSM850
Operating temperature: -40...85°C
Manufacturer series: RSM850
Type of relay: electromagnetic
Terminal pitch: 2.54mm
Mounting: SMD
Coil resistance: 2.88kΩ
Coil voltage min.: 18V DC
Contact material: AgPd/Au 0,2μm
Contact current max.: 2A
Relay variant: monostable; subminiature
Mechanical durability: 1000000000 cycles
DC contacts rating @R: 2A / 30V DC
Coil power consumption: 140mW
AC contacts rating @R: 0.5A / 125V AC
Body dimensions: 14.3x9.3x5.4mm
Contacts configuration: DPDT
Operate time: 3ms
OEM number: 2611721
Switched voltage: max. 30V DC; max. 250V AC
Coil voltage max.: 48V DC
Electrical life: 100000 cycles
Release time: 3ms
Rated coil voltage: 24V DC
IP rating: IP64
Contact resistance: 50mΩ
