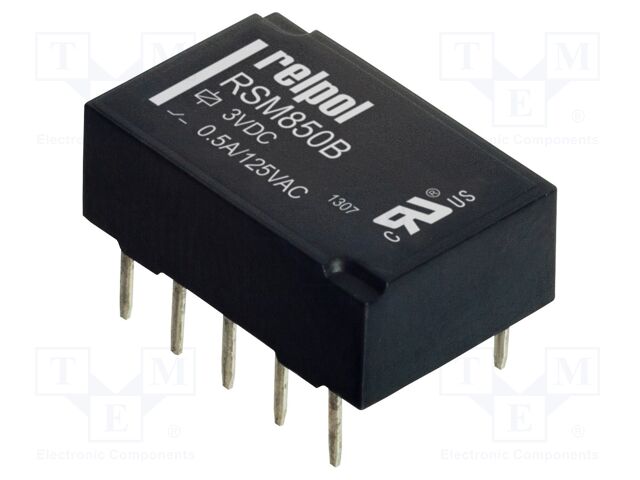

RSM850B-6112-85-1003 RELPOL

Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.5A/125VAC; RSM850B
Mounting: PCB
Mechanical durability: 100000000 cycles
Terminal pitch: 2.54mm
Operating temperature: -40...70°C
IP rating: IP64
Electrical life: 100000 cycles
Body dimensions: 14.3x9.3x5.4mm
Contact material: AgPd/Au 0,2μm
Coil resistance: 90Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Rated coil voltage: 3V DC
Coil voltage min.: 2.25V DC
Coil voltage max.: 8.7V DC
Coil power consumption: 100mW
Operate time: 3ms
Release time: 3ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 2A
Contact resistance: 50mΩ
Manufacturer series: RSM850B
OEM number: 2611710
Design: single coil
на замовлення 149 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
2+ | 378.61 грн |
5+ | 201.69 грн |
13+ | 190.53 грн |
Відгуки про товар
Написати відгук
Технічний опис RSM850B-6112-85-1003 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.5A/125VAC; RSM850B, Mounting: PCB, Mechanical durability: 100000000 cycles, Terminal pitch: 2.54mm, Operating temperature: -40...70°C, IP rating: IP64, Electrical life: 100000 cycles, Body dimensions: 14.3x9.3x5.4mm, Contact material: AgPd/Au 0,2μm, Coil resistance: 90Ω, Contacts configuration: DPDT, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Type of relay: electromagnetic, Relay variant: bistable; subminiature, Rated coil voltage: 3V DC, Coil voltage min.: 2.25V DC, Coil voltage max.: 8.7V DC, Coil power consumption: 100mW, Operate time: 3ms, Release time: 3ms, Switched voltage: max. 30V DC; max. 250V AC, Contact current max.: 2A, Contact resistance: 50mΩ, Manufacturer series: RSM850B, OEM number: 2611710, Design: single coil, кількість в упаковці: 1 шт.
Інші пропозиції RSM850B-6112-85-1003 за ціною від 225.77 грн до 480.58 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
RSM850B-6112-85-1003 | Виробник : RELPOL |
![]() Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.5A/125VAC; RSM850B Mounting: PCB Mechanical durability: 100000000 cycles Terminal pitch: 2.54mm Operating temperature: -40...70°C IP rating: IP64 Electrical life: 100000 cycles Body dimensions: 14.3x9.3x5.4mm Contact material: AgPd/Au 0,2μm Coil resistance: 90Ω Contacts configuration: DPDT AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 2A / 30V DC Type of relay: electromagnetic Relay variant: bistable; subminiature Rated coil voltage: 3V DC Coil voltage min.: 2.25V DC Coil voltage max.: 8.7V DC Coil power consumption: 100mW Operate time: 3ms Release time: 3ms Switched voltage: max. 30V DC; max. 250V AC Contact current max.: 2A Contact resistance: 50mΩ Manufacturer series: RSM850B OEM number: 2611710 Design: single coil кількість в упаковці: 1 шт |
на замовлення 149 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
RSM850B-6112-85-1003 | Виробник : RELPOL S.A. | RSM850B-6112-85-1003 |
на замовлення 154 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
