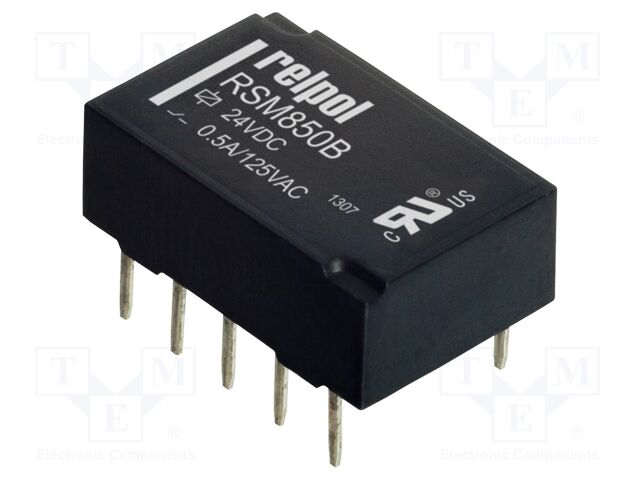

RSM850B-6112-85-1024 RELPOL
Виробник: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Manufacturer series: RSM850B
Switched voltage: max. 30V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 3.84kΩ
Operate time: 3ms
Body dimensions: 14.3x9.3x5.4mm
Release time: 3ms
Operating temperature: -40...70°C
Contact resistance: 50mΩ
Contact material: AgPd/Au 0,2μm
Terminal pitch: 2.54mm
Electrical life: 100000 cycles
Coil voltage min.: 18V DC
Coil voltage max.: 57.6V DC
Coil power consumption: 100mW
OEM number: 2611715
Design: single coil
Mechanical durability: 100000000 cycles
IP rating: IP64
на замовлення 50 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 305.36 грн |
| 5+ | 193.88 грн |
| 13+ | 183.15 грн |
Відгуки про товар
Написати відгук
Технічний опис RSM850B-6112-85-1024 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 24V DC, Contact current max.: 2A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Manufacturer series: RSM850B, Switched voltage: max. 30V DC; max. 250V AC, Relay variant: bistable; subminiature, Mounting: PCB, Coil resistance: 3.84kΩ, Operate time: 3ms, Body dimensions: 14.3x9.3x5.4mm, Release time: 3ms, Operating temperature: -40...70°C, Contact resistance: 50mΩ, Contact material: AgPd/Au 0,2μm, Terminal pitch: 2.54mm, Electrical life: 100000 cycles, Coil voltage min.: 18V DC, Coil voltage max.: 57.6V DC, Coil power consumption: 100mW, OEM number: 2611715, Design: single coil, Mechanical durability: 100000000 cycles, IP rating: IP64, кількість в упаковці: 1 шт.
Інші пропозиції RSM850B-6112-85-1024 за ціною від 214.27 грн до 408.81 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RSM850B-6112-85-1024 | Виробник : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; PCB Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 2A AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 2A / 30V DC Manufacturer series: RSM850B Switched voltage: max. 30V DC; max. 250V AC Relay variant: bistable; subminiature Mounting: PCB Coil resistance: 3.84kΩ Operate time: 3ms Body dimensions: 14.3x9.3x5.4mm Release time: 3ms Operating temperature: -40...70°C Contact resistance: 50mΩ Contact material: AgPd/Au 0,2μm Terminal pitch: 2.54mm Electrical life: 100000 cycles Coil voltage min.: 18V DC Coil voltage max.: 57.6V DC Coil power consumption: 100mW OEM number: 2611715 Design: single coil Mechanical durability: 100000000 cycles IP rating: IP64 кількість в упаковці: 1 шт |
на замовлення 50 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| RSM850B-6112-85-1024 | Виробник : RELPOL S.A. | RSM850B-6112-85-1024 |
на замовлення 50 шт: термін постачання 21-31 дні (днів) |
|
