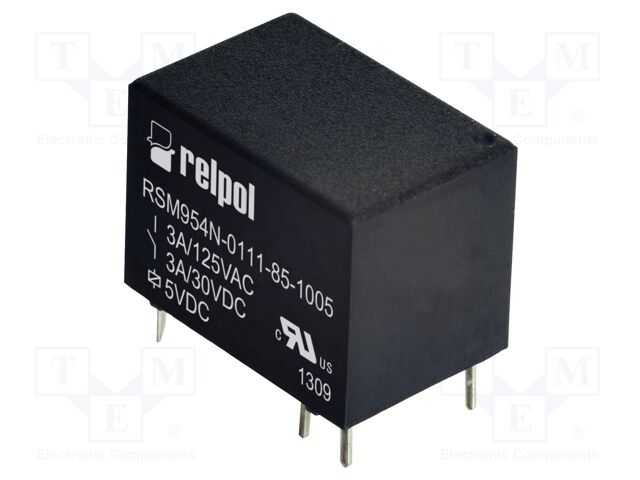

RSM954N-0111-85-1005 RELPOL
Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 3A; 3A/125VAC; 3A/30VDC
Mounting: PCB
Operating temperature: -25...55°C
Contact material: Ag/Au 0,2μm
Coil resistance: 75Ω
Contacts configuration: SPDT
AC contacts rating @R: 3A / 125V AC
DC contacts rating @R: 3A / 30V DC
Type of relay: electromagnetic
Relay variant: monostable; subminiature
Relay series: RSM954N
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 5.5V DC
Coil power consumption: 360mW
Operate time: 5ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 220V AC
Contact current max.: 3A
Contact resistance: 50mΩ
Electrical life: 100000 cycles
IP rating: IP64
Terminal pitch: 2.54mm
Mechanical durability: 100000000 cycles
OEM number: 2614624
Body dimensions: 15.5x11x11.5mm
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 3A; 3A/125VAC; 3A/30VDC
Mounting: PCB
Operating temperature: -25...55°C
Contact material: Ag/Au 0,2μm
Coil resistance: 75Ω
Contacts configuration: SPDT
AC contacts rating @R: 3A / 125V AC
DC contacts rating @R: 3A / 30V DC
Type of relay: electromagnetic
Relay variant: monostable; subminiature
Relay series: RSM954N
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 5.5V DC
Coil power consumption: 360mW
Operate time: 5ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 220V AC
Contact current max.: 3A
Contact resistance: 50mΩ
Electrical life: 100000 cycles
IP rating: IP64
Terminal pitch: 2.54mm
Mechanical durability: 100000000 cycles
OEM number: 2614624
Body dimensions: 15.5x11x11.5mm
на замовлення 538 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
4+ | 104.32 грн |
5+ | 87.88 грн |
14+ | 60.89 грн |
37+ | 57.43 грн |
500+ | 55.35 грн |
Відгуки про товар
Написати відгук
Технічний опис RSM954N-0111-85-1005 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 3A; 3A/125VAC; 3A/30VDC, Mounting: PCB, Operating temperature: -25...55°C, Contact material: Ag/Au 0,2μm, Coil resistance: 75Ω, Contacts configuration: SPDT, AC contacts rating @R: 3A / 125V AC, DC contacts rating @R: 3A / 30V DC, Type of relay: electromagnetic, Relay variant: monostable; subminiature, Relay series: RSM954N, Rated coil voltage: 5V DC, Coil voltage min.: 3.75V DC, Coil voltage max.: 5.5V DC, Coil power consumption: 360mW, Operate time: 5ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 220V AC, Contact current max.: 3A, Contact resistance: 50mΩ, Electrical life: 100000 cycles, IP rating: IP64, Terminal pitch: 2.54mm, Mechanical durability: 100000000 cycles, OEM number: 2614624, Body dimensions: 15.5x11x11.5mm, кількість в упаковці: 1 шт.
Інші пропозиції RSM954N-0111-85-1005 за ціною від 53.22 грн до 624 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RSM954N-0111-85-1005 | Виробник : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 3A; 3A/125VAC; 3A/30VDC Mounting: PCB Operating temperature: -25...55°C Contact material: Ag/Au 0,2μm Coil resistance: 75Ω Contacts configuration: SPDT AC contacts rating @R: 3A / 125V AC DC contacts rating @R: 3A / 30V DC Type of relay: electromagnetic Relay variant: monostable; subminiature Relay series: RSM954N Rated coil voltage: 5V DC Coil voltage min.: 3.75V DC Coil voltage max.: 5.5V DC Coil power consumption: 360mW Operate time: 5ms Release time: 5ms Switched voltage: max. 30V DC; max. 220V AC Contact current max.: 3A Contact resistance: 50mΩ Electrical life: 100000 cycles IP rating: IP64 Terminal pitch: 2.54mm Mechanical durability: 100000000 cycles OEM number: 2614624 Body dimensions: 15.5x11x11.5mm кількість в упаковці: 1 шт |
на замовлення 538 шт: термін постачання 7-14 дні (днів) |
|
|||||||||||||
RSM954N-0111-85-1005 | Виробник : RELPOL |
3A; 5V; SPDT; Coil power 360mW; 15,5 x 11 x 11,5mm; IP64 PCB; Equivalent: AZ954 RSM954N-0111-85-1005 subminiature signal relay, monostable P RSM954Np005 кількість в упаковці: 25 шт |
на замовлення 4 шт: термін постачання 28-31 дні (днів) |
|
|||||||||||||
RSM954N0111851005 | Виробник : Relpol | Реле слабострумове; Iк, А = 3; Uк, В = 220 (AC); 30 (DC); Uн, В = 5; Р, Вт = 0,36; Форма конт. = SPDT; Тексп, °С = -25...+55; Тип монт. = вивідний; Ro, Ом = 75; Час викл. = 5 мс; Час спрац. = 5 мс; 15.5x11x11.5mm |
на замовлення 1 шт: термін постачання 2-3 дні (днів) |
|
