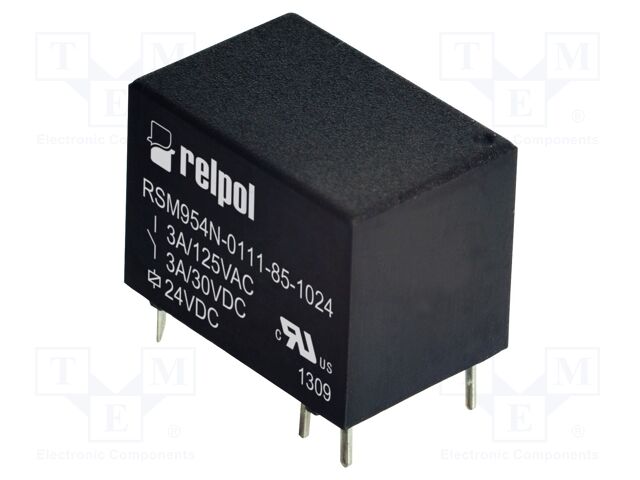

RSM954N-0111-85-1024 RELPOL
Виробник: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 3A; 3A/125VAC; 3A/30VDC
Contact material: Ag/Au 0,2μm
Manufacturer series: RSM954N
Type of relay: electromagnetic
IP rating: IP64
Relay variant: monostable; subminiature
Mounting: PCB
Contacts configuration: SPDT
Operating temperature: -25...55°C
Terminal pitch: 2.54mm
Operate time: 5ms
Release time: 5ms
Body dimensions: 15.5x11x11.5mm
Contact resistance: 50mΩ
Coil power consumption: 360mW
AC contacts rating @R: 3A / 125V AC
Contact current max.: 3A
DC contacts rating @R: 3A / 30V DC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 26.5V DC
Switched voltage: max. 30V DC; max. 220V AC
Coil resistance: 1.6kΩ
Electrical life: 100000 cycles
Mechanical durability: 100000000 cycles
OEM number: 2614628
на замовлення 715 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 137.72 грн |
| 5+ | 115.10 грн |
| 25+ | 102.31 грн |
| 100+ | 76.73 грн |
| 500+ | 71.14 грн |
