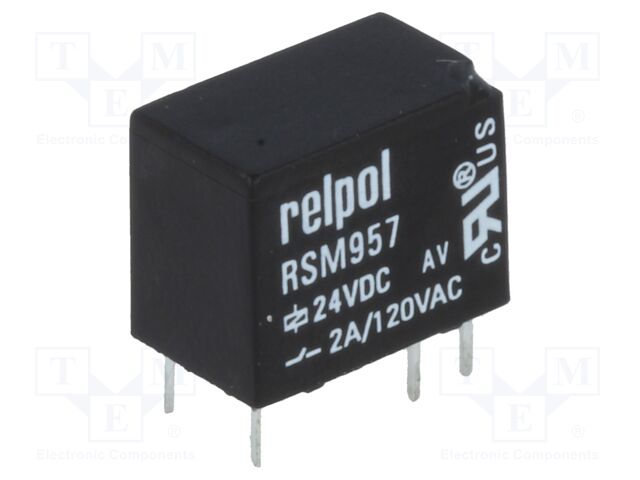

RSM957-0111-85-S024 RELPOL
Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 2A; 2A/120VAC; 2A/24VDC
Mounting: PCB
Contacts configuration: SPDT
Type of relay: electromagnetic
IP rating: IP64
Manufacturer series: RSM957
Operating temperature: -30...70°C
Release time: 5ms
Terminal pitch: 2.54mm
Operate time: 5ms
Body dimensions: 12.6x10x7.8mm
Contact resistance: 100mΩ
Coil power consumption: 200mW
AC contacts rating @R: 2A / 120V AC
Contact current max.: 2A
DC contacts rating @R: 2A / 24V DC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 31.2V DC
Switched voltage: max. 24V DC; max. 125V AC
Coil resistance: 2.88kΩ
OEM number: 2611740
Contact material: Ag/Au 0,2μm
Relay variant: subminiature
| Кількість | Ціна |
|---|---|
| 2+ | 257.08 грн |
| 5+ | 211.63 грн |
| 20+ | 154.91 грн |
| 100+ | 149.83 грн |
| 500+ | 143.91 грн |
Відгуки про товар
Написати відгук
Технічний опис RSM957-0111-85-S024 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 2A; 2A/120VAC; 2A/24VDC, Mounting: PCB, Contacts configuration: SPDT, Type of relay: electromagnetic, IP rating: IP64, Manufacturer series: RSM957, Operating temperature: -30...70°C, Release time: 5ms, Terminal pitch: 2.54mm, Operate time: 5ms, Body dimensions: 12.6x10x7.8mm, Contact resistance: 100mΩ, Coil power consumption: 200mW, AC contacts rating @R: 2A / 120V AC, Contact current max.: 2A, DC contacts rating @R: 2A / 24V DC, Coil voltage min.: 18V DC, Rated coil voltage: 24V DC, Coil voltage max.: 31.2V DC, Switched voltage: max. 24V DC; max. 125V AC, Coil resistance: 2.88kΩ, OEM number: 2611740, Contact material: Ag/Au 0,2μm, Relay variant: subminiature.
