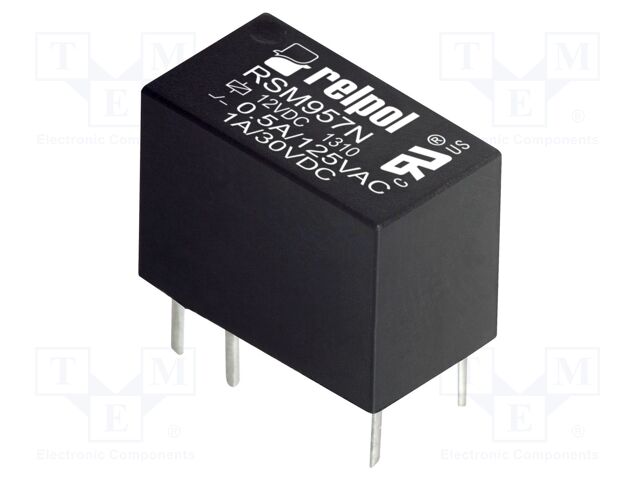

RSM957N-0111-85-S012 RELPOL
Виробник: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: RSM957N
Switched voltage: max. 30V DC; max. 220V AC
Relay variant: monostable; sensitive; subminiature
Mounting: PCB
Coil resistance: 960Ω
Coil voltage min.: 9.6V DC
Coil voltage max.: 24V DC
Operate time: 5ms
Body dimensions: 12.5x7.5x10mm
Release time: 5ms
Coil power consumption: 150mW
IP rating: IP64
Operating temperature: -30...70°C
Contact resistance: 100mΩ
Contact material: Ag/Au 0,2μm
Terminal pitch: 2.54mm
OEM number: 2614634
на замовлення 219 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 146.96 грн |
| 5+ | 122.97 грн |
| 10+ | 93.62 грн |
| 28+ | 88.86 грн |
Відгуки про товар
Написати відгук
Технічний опис RSM957N-0111-85-S012 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; PCB, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 12V DC, Contact current max.: 1A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 1A / 30V DC, Manufacturer series: RSM957N, Switched voltage: max. 30V DC; max. 220V AC, Relay variant: monostable; sensitive; subminiature, Mounting: PCB, Coil resistance: 960Ω, Coil voltage min.: 9.6V DC, Coil voltage max.: 24V DC, Operate time: 5ms, Body dimensions: 12.5x7.5x10mm, Release time: 5ms, Coil power consumption: 150mW, IP rating: IP64, Operating temperature: -30...70°C, Contact resistance: 100mΩ, Contact material: Ag/Au 0,2μm, Terminal pitch: 2.54mm, OEM number: 2614634, кількість в упаковці: 1 шт.
Інші пропозиції RSM957N-0111-85-S012 за ціною від 102.82 грн до 176.35 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RSM957N-0111-85-S012 | Виробник : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; PCB Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 1A AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 1A / 30V DC Manufacturer series: RSM957N Switched voltage: max. 30V DC; max. 220V AC Relay variant: monostable; sensitive; subminiature Mounting: PCB Coil resistance: 960Ω Coil voltage min.: 9.6V DC Coil voltage max.: 24V DC Operate time: 5ms Body dimensions: 12.5x7.5x10mm Release time: 5ms Coil power consumption: 150mW IP rating: IP64 Operating temperature: -30...70°C Contact resistance: 100mΩ Contact material: Ag/Au 0,2μm Terminal pitch: 2.54mm OEM number: 2614634 кількість в упаковці: 1 шт |
на замовлення 219 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||
| RSM957N-0111-85-S012 | Виробник : RELPOL S.A. | Subminiature - Signal Relay |
на замовлення 576 шт: термін постачання 21-31 дні (днів) |
|
