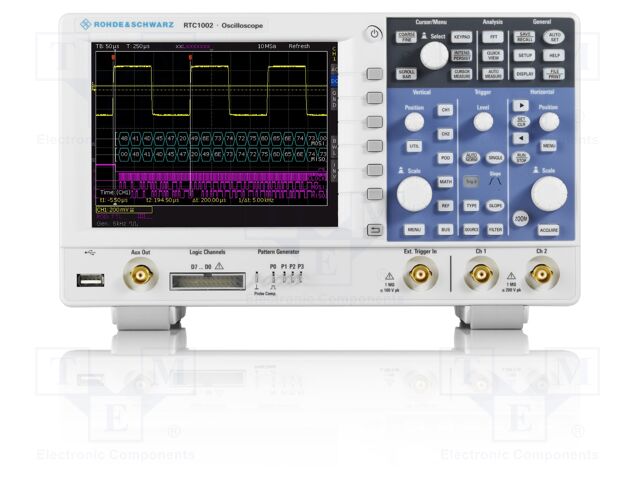

RTC1K-COM2 ROHDE & SCHWARZ
Виробник: ROHDE & SCHWARZCategory: Digital Oscilloscopes
Description: Oscilloscope: mixed signal; Ch: 2; 300MHz; 1Gsps; 1Mpts; RTC1000
Type of oscilloscope: mixed signal
Band: 300MHz
Vertical resolution: 8bit
Kind of display used: colour; LCD 6,5"
Number of channels: 2
Sampling: 1Gsps
Memory record length: 1Mpts
Time base: 1n...100s/div
Display resolution: 640x480
Trigger: falling-edge; impulse width; logic; rising-edge; serial protocol; video signal
Input coupling: AC, DC, GND
Trigger modes: automatic; normal; single
Rise time: ≤1.15ns
Input sensitivity: 1mV/div...10V/div
Interface: Ethernet; USB
Input impedance: 1MΩ/14pF
Additional functions: function generator; voltmeter; with built-in component test function
Dimensions: 285x175x140mm
Measuring instrument features: EF function - electrical field detecion; mask testing; mathematical functions: addition, subtraction, division, multiplication and FFT; protocols analyse: I2C, SPI, UART/RS232/RS422/RS485, CAN/LIN
Standard equipment: mains cable; oscilloscope probe (1 per channel); RTC-B1; RTC-B6; RTC-K1; RTC-K2; RTC-K3
Manufacturer series: RTC1000
Supply voltage: 100...240V AC
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 150V
Supply voltage 400Hz: 100...120V AC
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 159290.43 грн |
