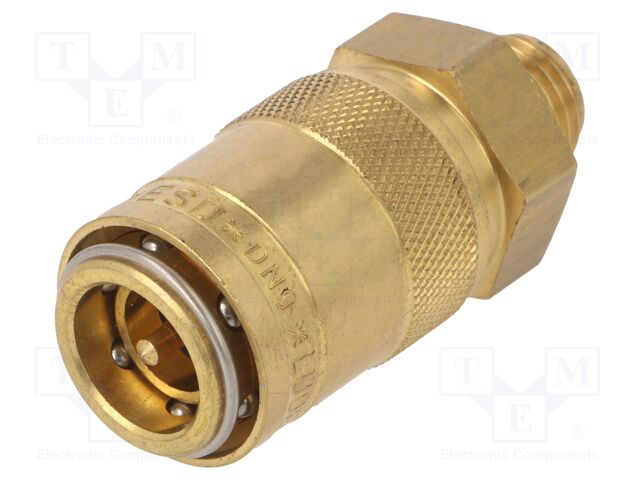

S09DZ GZ38 PNEUMAT
Виробник: PNEUMAT
Category: Connectors and tubing
Description: Quick connection coupling; straight,with valve; max.15bar
Operating temperature: -5...180°C
Body material: brass
L dimension: 59mm
L1 dimension: 9mm
D1 dimension: 13mm
D2 dimension: 23mm
Application: for injection molds
Operating pressure: max. 15bar
Splice terminal variant: straight; with valve
External thread: BSP 3/8"
Seal material: FPM
Type of pneumatic accessories: quick connection coupling
SW dimension: 19mm
кількість в упаковці: 1 шт
Category: Connectors and tubing
Description: Quick connection coupling; straight,with valve; max.15bar
Operating temperature: -5...180°C
Body material: brass
L dimension: 59mm
L1 dimension: 9mm
D1 dimension: 13mm
D2 dimension: 23mm
Application: for injection molds
Operating pressure: max. 15bar
Splice terminal variant: straight; with valve
External thread: BSP 3/8"
Seal material: FPM
Type of pneumatic accessories: quick connection coupling
SW dimension: 19mm
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис S09DZ GZ38 PNEUMAT
Category: Connectors and tubing, Description: Quick connection coupling; straight,with valve; max.15bar, Operating temperature: -5...180°C, Body material: brass, L dimension: 59mm, L1 dimension: 9mm, D1 dimension: 13mm, D2 dimension: 23mm, Application: for injection molds, Operating pressure: max. 15bar, Splice terminal variant: straight; with valve, External thread: BSP 3/8", Seal material: FPM, Type of pneumatic accessories: quick connection coupling, SW dimension: 19mm, кількість в упаковці: 1 шт.
