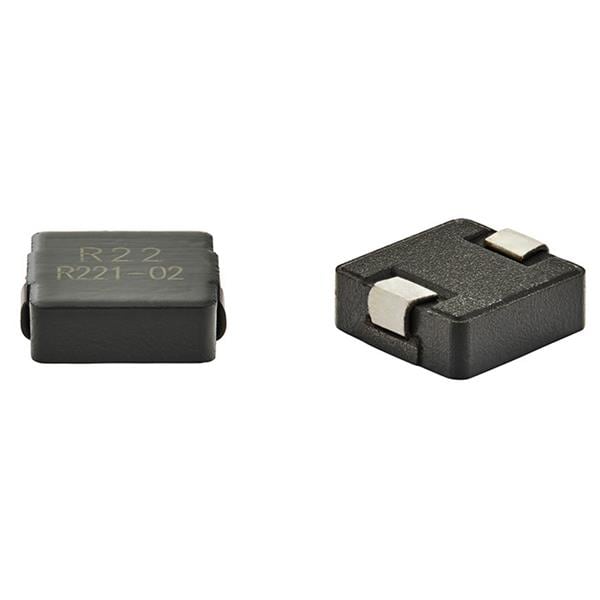

SCIHP1350-3R3M Signal Transformer
Виробник: Signal TransformerDescription: FIXED IND 3.3UH 14A 9.2 MOHM SMD
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Nonstandard
Size / Dimension: 0.543" L x 0.508" W (13.80mm x 12.90mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Wirewound
Operating Temperature: -55°C ~ 125°C
DC Resistance (DCR): 9.2mOhm Max
Current - Saturation (Isat): 24A
Inductance Frequency - Test: 200 kHz
Height - Seated (Max): 0.197" (5.00mm)
Inductance: 3.3 µH
Current Rating (Amps): 14 A
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис SCIHP1350-3R3M Signal Transformer
Description: FIXED IND 3.3UH 14A 9.2 MOHM SMD, Tolerance: ±20%, Packaging: Tape & Reel (TR), Package / Case: Nonstandard, Size / Dimension: 0.543" L x 0.508" W (13.80mm x 12.90mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Wirewound, Operating Temperature: -55°C ~ 125°C, DC Resistance (DCR): 9.2mOhm Max, Current - Saturation (Isat): 24A, Inductance Frequency - Test: 200 kHz, Height - Seated (Max): 0.197" (5.00mm), Inductance: 3.3 µH, Current Rating (Amps): 14 A.
Інші пропозиції SCIHP1350-3R3M
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
|
|
SCIHP1350-3R3M | Виробник : Signal Transformer |
Description: FIXED IND 3.3UH 14A 9.2 MOHM SMD Tolerance: ±20% Packaging: Cut Tape (CT) Package / Case: Nonstandard Size / Dimension: 0.543" L x 0.508" W (13.80mm x 12.90mm) Mounting Type: Surface Mount Shielding: Shielded Type: Wirewound Operating Temperature: -55°C ~ 125°C DC Resistance (DCR): 9.2mOhm Max Current - Saturation (Isat): 24A Inductance Frequency - Test: 200 kHz Height - Seated (Max): 0.197" (5.00mm) Inductance: 3.3 µH Current Rating (Amps): 14 A |
товару немає в наявності |
|
 |
SCIHP1350-3R3M | Виробник : Bel Signal Transformer |
Power Inductors - SMD SMD Inductor Shielded |
товару немає в наявності |
