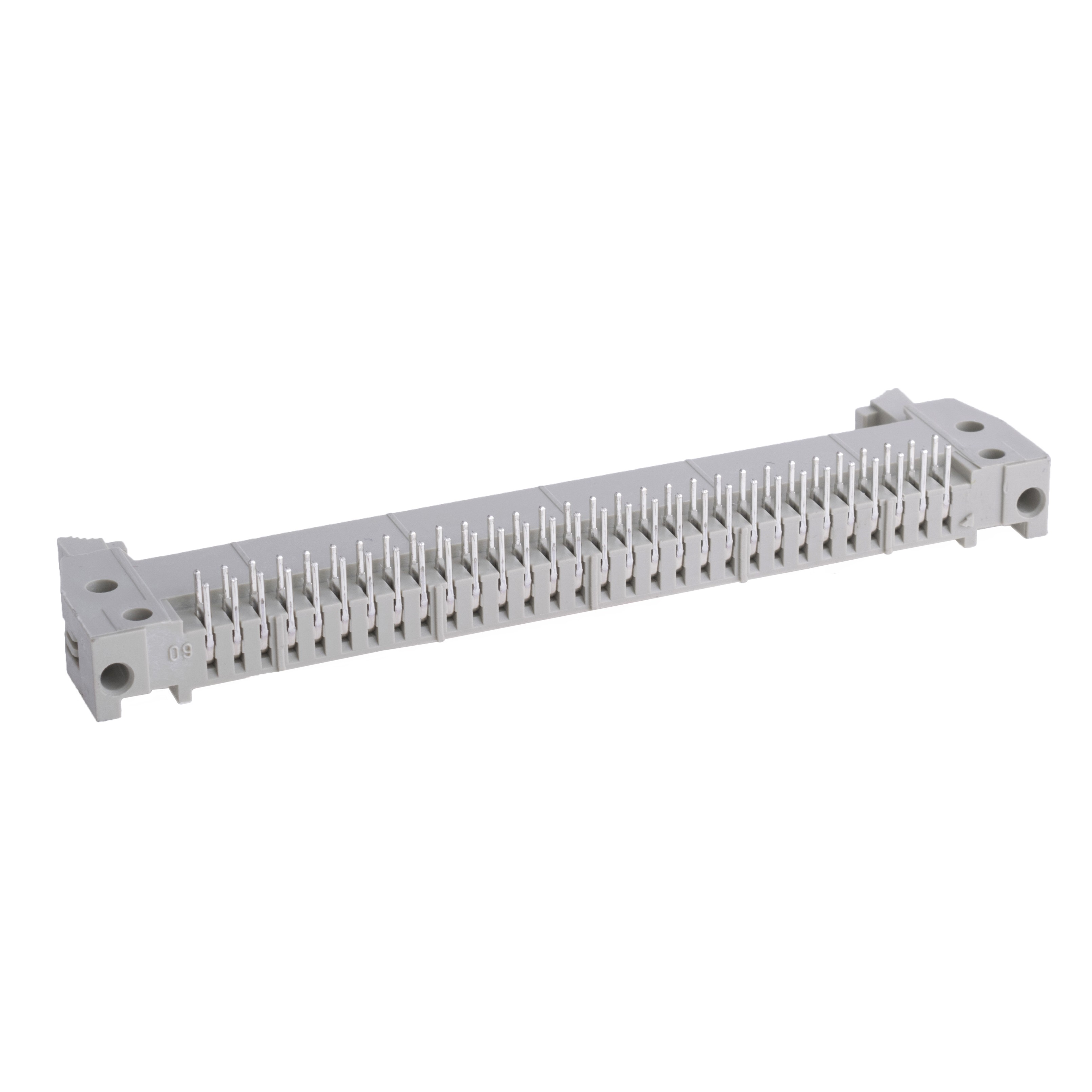

SCM-60R (09185606903-Harting)


0918560X90X_BL02_R29753.PDF
Код товару: 57375
2 Додати до обраних Обраний товар

Виробник: HARTING
Функціональний опис: Відповідна частина для IDC, вилка на плату з засувками, прямий кут, 60 контактів 2x30, крок 2,54 мм
Вилка або розетка: Вилка
К-сть контактів: 60
Серія: SCM
Механічний монтаж: На плату
Орієнтація в просторі: Кутовий
у наявності: 183 шт
  • 133 шт - склад
  • 50 шт - РАДІОМАГ-Дніпро
КількістьЦіна без ПДВ
1+82.50 грн
10+71.60 грн
100+60.50 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Інші пропозиції SCM-60R (09185606903-Harting)

Фото Назва Виробник Інформація Доступність Ціна без ПДВ
09185606903 09185606903 HARTING PDF_DS_09185606903_EN.pdf Description: CONN HEADER R/A 60POS 2.54MM
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole, Right Angle
Number of Positions: 60
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks, Long
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Gray
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.335" (8.51mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
09185606903 HARTING PDF_DS_09185606903_EN.pdf Category: IDC connectors
Description: Connector: IDC; socket; male; data; PIN: 60; SEK; angled; 1A; THT; 2x30
Type of connector: IDC
Manufacturer series: SEK
Connector: socket
Kind of connector: male
Connector family: data
Number of pins: 60
Connector variant: with ejector
Contacts pitch: 2.54mm
Connector pinout layout: 2x30
Spatial orientation: angled
Electrical mounting: THT
Current rating: 1A
Mechanical durability: 250 cycles
Body colour: grey
Operating temperature: -55...125°C
Engineering PN: SEK-18 SV MA STD ANG29 RLG 60P PL2
Body material: PBT
Lead length: 2.9mm
Contact material: copper alloy
Flammability rating: UL94V-0
товару немає в наявності
Мінімальне замовлення: 50 шт
В кошику  од. на суму  грн.
09185606903 09185606903 Harting pdf_ds_09185606903_en.pdf Conn Ejector Header HDR 60 POS 2.54mm Solder RA Side Entry Thru-Hole Carton
товару немає в наявності
Мінімальне замовлення: 50 шт
В кошику  од. на суму  грн.
09185606903 PDF_DS_09185606903_EN.pdf
Виробник: HARTING
Description: CONN HEADER R/A 60POS 2.54MM
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole, Right Angle
Number of Positions: 60
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks, Long
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Gray
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.335" (8.51mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
09185606903 PDF_DS_09185606903_EN.pdf
Виробник: HARTING
Category: IDC connectors
Description: Connector: IDC; socket; male; data; PIN: 60; SEK; angled; 1A; THT; 2x30
Type of connector: IDC
Manufacturer series: SEK
Connector: socket
Kind of connector: male
Connector family: data
Number of pins: 60
Connector variant: with ejector
Contacts pitch: 2.54mm
Connector pinout layout: 2x30
Spatial orientation: angled
Electrical mounting: THT
Current rating: 1A
Mechanical durability: 250 cycles
Body colour: grey
Operating temperature: -55...125°C
Engineering PN: SEK-18 SV MA STD ANG29 RLG 60P PL2
Body material: PBT
Lead length: 2.9mm
Contact material: copper alloy
Flammability rating: UL94V-0
товару немає в наявності
Мінімальне замовлення: 50 шт
В кошику  од. на суму  грн.
09185606903 pdf_ds_09185606903_en.pdf
Виробник: Harting
Conn Ejector Header HDR 60 POS 2.54mm Solder RA Side Entry Thru-Hole Carton
товару немає в наявності
Мінімальне замовлення: 50 шт
В кошику  од. на суму  грн.
