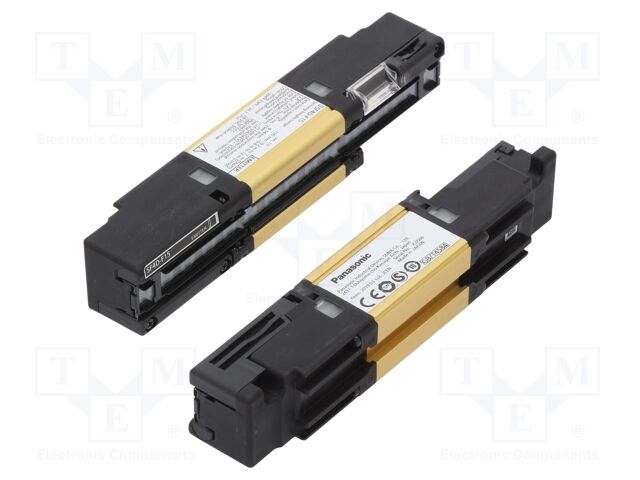

SF4D-F15 Panasonic

Category: Light Curtains, Description: Safety light curtain; H: 150mm; 0÷12m; IP67; SF4D; 24VDC; cables, Software: download from manufacturers website, Sensors features: finger protection, Additional functions: fix blanking function; floating blanking function; IO-Link; mutting function; no dead zone; the possibility of optical synchronization, IP rating: IP67, Related items: MS-SFD-1-5; MS-SFD-3-6; SF4D-TM1; SF-C13; SF-C21; SFD-CCB3; SFD-CCB3-MU; SFD-CCB5-S; SFD-CCB7; SFD-CCB7-MU; SFD-CCB10-S; SFD-WL3, Kind of output 2: NPN; PNP, Kind of output 1: NPN; PNP, Kit contents: receiver; transmitter, Type of sensor: safety light curtain, Manufacturer series: SF4D, Operation mode: transmitter-receiver, Operating temperature: -10...55°C, Range: 0...12m, Height: 150mm, Switched current, max.: 350mA, Safety category: 4, Supply voltage: 24V DC, Resolution: 10mm, Enclosure material: aluminium, Connection: cables, кількість в упаковці: 1 шт.
