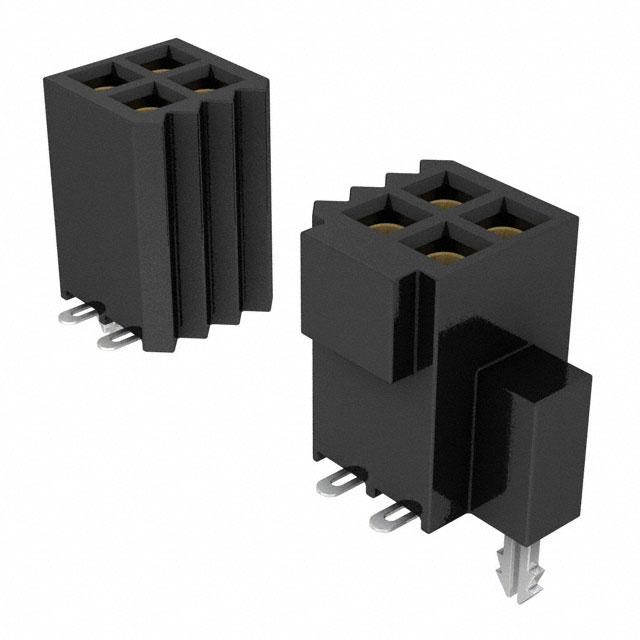

SFM-120-02-S-D-LC Samtec Inc.

Description: CONN RCPT 40POS 0.05 GOLD SMD, Number of Rows: 2, Row Spacing - Mating: 0.050" (1.27mm), Insulation Height: 0.185" (4.70mm), Part Status: Active, Contact Finish - Post: Tin, Contact Type: Female Socket, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Positions: 40, Mounting Type: Surface Mount, Current Rating (Amps): 3.2A per Contact, Voltage Rating: 250VAC, Connector Type: Receptacle, Features: Board Lock, Packaging: Tube, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull.
