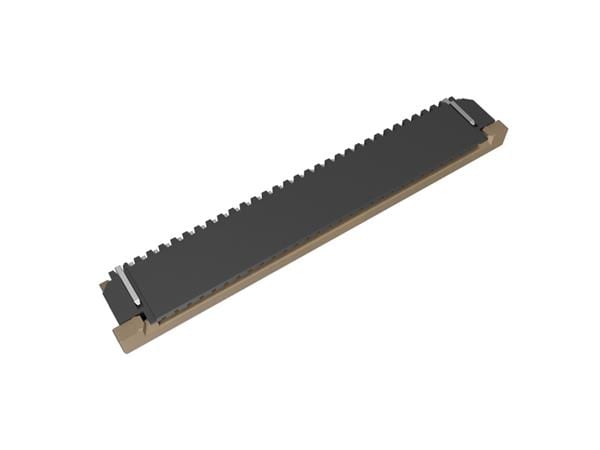

SFW30R-4STE1LF Amphenol ICC (FCI)
Виробник: Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 30POS 1MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Contact Finish: Tin
Voltage Rating: 100V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.106" (2.70mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type: Notched, Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
Відгуки про товар
Написати відгук
Технічний опис SFW30R-4STE1LF Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 30POS 1MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Tin, Voltage Rating: 100V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 30, Pitch: 0.039" (1.00mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.106" (2.70mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, 0.33mm, Housing Material: Polyphenylene Sulfide (PPS), Glass Filled, Cable End Type: Notched, Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Top.
Інші пропозиції SFW30R-4STE1LF за ціною від 40.97 грн до 83.87 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SFW30R-4STE1LF | Amphenol ICC (FCI) |
Description: CONN FFC FPC TOP 30POS 1MM R/A Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Tin Voltage Rating: 100V Mounting Type: Surface Mount, Right Angle Number of Positions: 30 Pitch: 0.039" (1.00mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.106" (2.70mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm, 0.33mm Housing Material: Polyphenylene Sulfide (PPS), Glass Filled Cable End Type: Notched, Tapered Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Top |
на замовлення 3305 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
SFW30R-4STE1LF | Amphenol FCI |
FFC & FPC Connectors 1.00mm Flex Connector, SFW-R series, 30 Position, Top side Contact, Side Entry Surface Mount ZIF Connector, Lead Free, with Cable Lock. |
на замовлення 3970 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| SFW30R-4STE1LF |
|
Виробник: Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 30POS 1MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Tin
Voltage Rating: 100V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.106" (2.70mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type: Notched, Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
Description: CONN FFC FPC TOP 30POS 1MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Tin
Voltage Rating: 100V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.106" (2.70mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type: Notched, Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
на замовлення 3305 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 4+ | 83.87 грн |
| 10+ | 67.93 грн |
| 25+ | 65.18 грн |
| 50+ | 59.87 грн |
| 100+ | 57.27 грн |
| 250+ | 52.06 грн |
| 500+ | 46.09 грн |
| 1000+ | 40.97 грн |
| SFW30R-4STE1LF |
|
Виробник: Amphenol FCI
FFC & FPC Connectors 1.00mm Flex Connector, SFW-R series, 30 Position, Top side Contact, Side Entry Surface Mount ZIF Connector, Lead Free, with Cable Lock.
FFC & FPC Connectors 1.00mm Flex Connector, SFW-R series, 30 Position, Top side Contact, Side Entry Surface Mount ZIF Connector, Lead Free, with Cable Lock.
на замовлення 3970 шт:
термін постачання 21-30 дні (днів)
