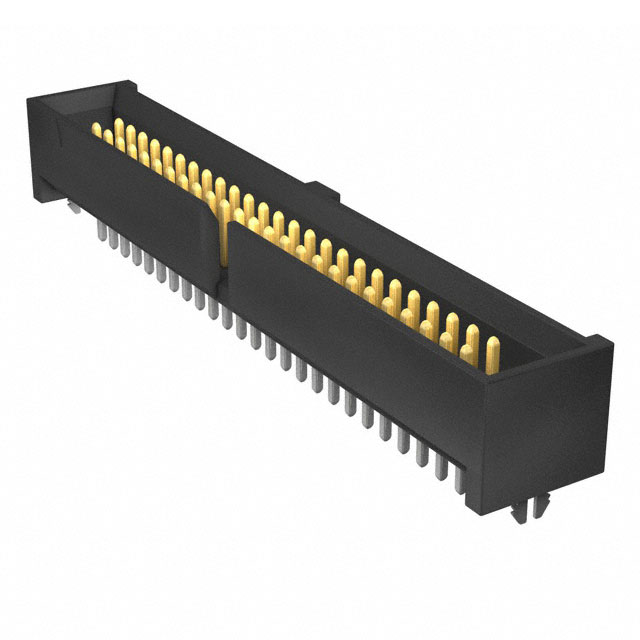

SHF-125-01-L-D-TH Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER VERT 50POS 1.27MM
Contact Length - Mating: 0.120" (3.05mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.210" (5.33mm)
Contact Length - Post: 0.075" (1.91mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 50
Mounting Type: Through Hole
Current Rating (Amps): 3A
Connector Type: Header
Features: Keying Slot
Packaging: Tube
Відгуки про товар
Написати відгук
Технічний опис SHF-125-01-L-D-TH Samtec Inc.
Description: CONN HEADER VERT 50POS 1.27MM, Contact Length - Mating: 0.120" (3.05mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.210" (5.33mm), Contact Length - Post: 0.075" (1.91mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 50, Mounting Type: Through Hole, Current Rating (Amps): 3A, Connector Type: Header, Features: Keying Slot, Packaging: Tube.
Інші пропозиції SHF-125-01-L-D-TH за ціною від 220.66 грн до 396.74 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SHF-125-01-L-D-TH | Samtec |
Headers & Wire Housings Shrouded Terminal Strip |
на замовлення 158 шт: термін постачання 21-30 дні (днів) |
|
| SHF-125-01-L-D-TH |
|
Виробник: Samtec
Headers & Wire Housings Shrouded Terminal Strip
Headers & Wire Housings Shrouded Terminal Strip
на замовлення 158 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 396.74 грн |
| 30+ | 373.40 грн |
| 60+ | 301.66 грн |
| 105+ | 244.40 грн |
| 510+ | 220.66 грн |
