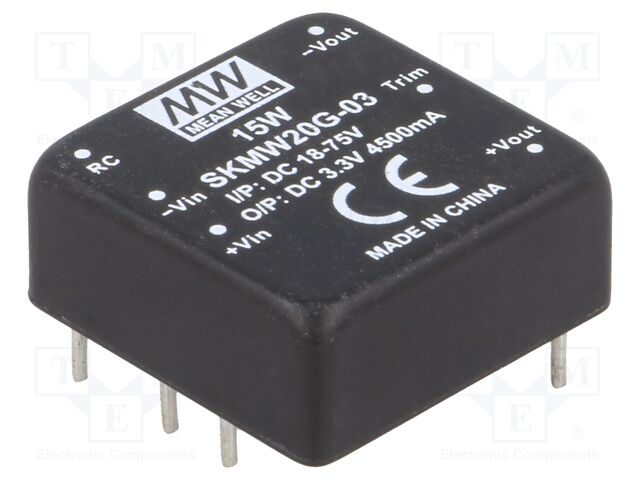

SKMW20G-03 MEAN WELL
Виробник: MEAN WELL
Category: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 0÷4500mA
Power: 20W
Output voltage: 3.3V DC
Output current: 0...4.5A
Body dimensions: 25.4x25.4x10.2mm
Manufacturer series: SKMW20
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP; undervoltage UVP
Operating temperature: -40...85°C
Number of outputs: 1
Efficiency: 87%
Case: DIP
Mounting: THT
Input voltage: 18...75V DC
Switching frequency: 270kHz
Type of converter: DC/DC
Insulation voltage: 1.5kV DC
Dimensions: 1"x1"
Відгуки про товар
Написати відгук
Технічний опис SKMW20G-03 MEAN WELL
Category: DC/DC Converters, Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 0÷4500mA, Power: 20W, Output voltage: 3.3V DC, Output current: 0...4.5A, Body dimensions: 25.4x25.4x10.2mm, Manufacturer series: SKMW20, Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP; undervoltage UVP, Operating temperature: -40...85°C, Number of outputs: 1, Efficiency: 87%, Case: DIP, Mounting: THT, Input voltage: 18...75V DC, Switching frequency: 270kHz, Type of converter: DC/DC, Insulation voltage: 1.5kV DC, Dimensions: 1"x1".
Інші пропозиції SKMW20G-03 за ціною від 2511.55 грн до 2837.90 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SKMW20G-03 | MEAN WELL USA Inc. |
Description: DC DC CONVERTER 3.3V 15W Features: Remote On/Off, OCP, OVP, SCP, UVLO Packaging: Tube Package / Case: 6-DIP Module Size / Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 75V Efficiency: 87% Current - Output (Max): 4.5A Voltage - Input (Min): 18V Voltage - Output 1: 3.3V Power (Watts): 15 W Number of Outputs: 1 Voltage - Isolation: 1.5 kV |
на замовлення 16 шт: термін постачання 21-31 дні (днів) |
|
||||||
 |
SKMW20G-03 | MEAN WELL |
Isolated DC/DC Converters - Through Hole 18-75Vin 3.3Vout 4500mA DIP Iso Reg |
на замовлення 5 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| SKMW20G-03 |
|
Виробник: MEAN WELL USA Inc.
Description: DC DC CONVERTER 3.3V 15W
Features: Remote On/Off, OCP, OVP, SCP, UVLO
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 75V
Efficiency: 87%
Current - Output (Max): 4.5A
Voltage - Input (Min): 18V
Voltage - Output 1: 3.3V
Power (Watts): 15 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
Description: DC DC CONVERTER 3.3V 15W
Features: Remote On/Off, OCP, OVP, SCP, UVLO
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 75V
Efficiency: 87%
Current - Output (Max): 4.5A
Voltage - Input (Min): 18V
Voltage - Output 1: 3.3V
Power (Watts): 15 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
на замовлення 16 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 2837.90 грн |
| 5+ | 2576.15 грн |
| 10+ | 2511.55 грн |
| SKMW20G-03 |
|
Виробник: MEAN WELL
Isolated DC/DC Converters - Through Hole 18-75Vin 3.3Vout 4500mA DIP Iso Reg
Isolated DC/DC Converters - Through Hole 18-75Vin 3.3Vout 4500mA DIP Iso Reg
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
