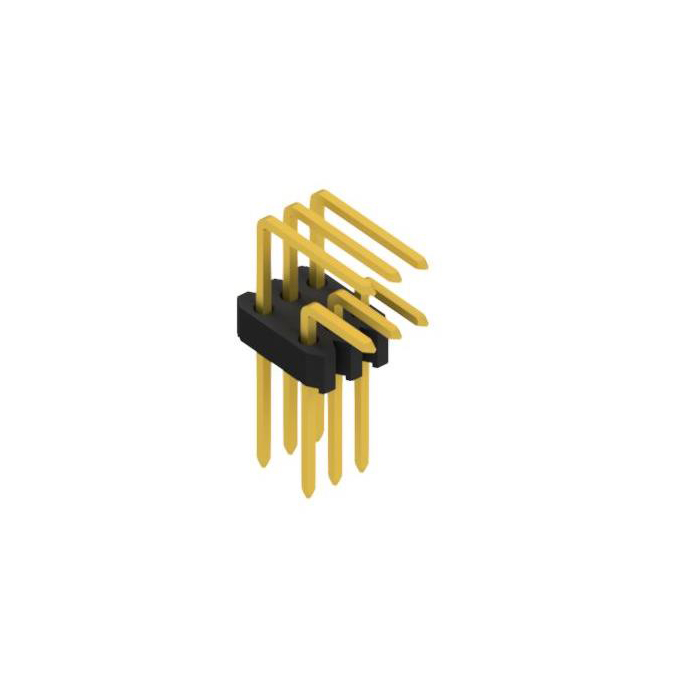

SLV W 2 KA 054 60 G Fischer Elektronik
Виробник: Fischer Elektronik
Description: pitch 1.27 x 2.54 mm; suitable f
Contact Shape: Square
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 7.87µin (0.200µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Copper Zinc
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -40°C ~ 163°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 60
Mounting Type: Through Hole
Current Rating (Amps): 1.5A
Voltage Rating: 125VAC
Contact Length - Mating: 0.213" (5.40mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Shrouding: Unshrouded
Insulation Height: 0.067" (1.70mm)
Connector Type: Header
Packaging: Bulk
Відгуки про товар
Написати відгук
Технічний опис SLV W 2 KA 054 60 G Fischer Elektronik
Description: pitch 1.27 x 2.54 mm; suitable f, Contact Shape: Square, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: 7.87µin (0.200µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Copper Zinc, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -40°C ~ 163°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 60, Mounting Type: Through Hole, Current Rating (Amps): 1.5A, Voltage Rating: 125VAC, Contact Length - Mating: 0.213" (5.40mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled, Shrouding: Unshrouded, Insulation Height: 0.067" (1.70mm), Connector Type: Header, Packaging: Bulk.
Інші пропозиції SLV W 2 KA 054 60 G
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
|---|---|---|---|---|---|
 |
SLVW2KA05460G | FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 60; THT; 1.5A; 125V Type of connector: pin strips Connector: pin header Kind of connector: male Number of pins: 60 Electrical mounting: THT Current rating: 1.5A Rated voltage: 0.125kV Manufacturer series: SLVW 2 KA Spatial orientation: angled Contacts pitch: 1.27mm Connector pinout layout: 2x30 Contact plating: gold-plated Kind of package: bulk Flammability rating: UL94V-0 Contact material: brass Body material: polyamide 46 Overall length: 11.44mm Body colour: black Operating temperature: -40...163°C |
товару немає в наявності |
В кошику од. на суму грн. |
| SLVW2KA05460G |
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 60; THT; 1.5A; 125V
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 60
Electrical mounting: THT
Current rating: 1.5A
Rated voltage: 0.125kV
Manufacturer series: SLVW 2 KA
Spatial orientation: angled
Contacts pitch: 1.27mm
Connector pinout layout: 2x30
Contact plating: gold-plated
Kind of package: bulk
Flammability rating: UL94V-0
Contact material: brass
Body material: polyamide 46
Overall length: 11.44mm
Body colour: black
Operating temperature: -40...163°C
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 60; THT; 1.5A; 125V
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 60
Electrical mounting: THT
Current rating: 1.5A
Rated voltage: 0.125kV
Manufacturer series: SLVW 2 KA
Spatial orientation: angled
Contacts pitch: 1.27mm
Connector pinout layout: 2x30
Contact plating: gold-plated
Kind of package: bulk
Flammability rating: UL94V-0
Contact material: brass
Body material: polyamide 46
Overall length: 11.44mm
Body colour: black
Operating temperature: -40...163°C
