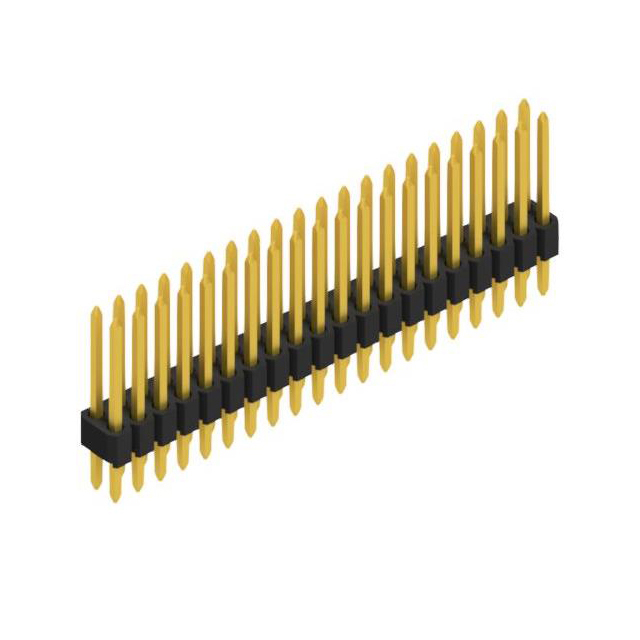

SLV W 4 055 40 G Fischer Elektronik

Виробник: Fischer Elektronik
Description:

• two rows 4-72 contactsPackaging: Tube
  Connector Type: Header
  Voltage Rating: 125VAC
  Current Rating (Amps): 1.5A
  Mounting Type: Through Hole
  Number of Positions: 40
  Number of Rows: 2
  Style: Board to Board or Cable
  Operating Temperature: -40°C ~ 163°C
  Contact Type: Male Pin
  Fastening Type: Push-Pull
  Number of Positions Loaded: All
  Termination: Solder
  Material Flammability Rating: UL94 V-0
  Contact Material: Copper Zinc
  Insulation Color: Black
  Pitch - Mating: 0.050" (1.27mm)
  Contact Finish - Mating: Gold
  Contact Finish Thickness - Mating: 7.87µin (0.200µm)
  Contact Finish - Post: Gold
  Contact Shape: Square
  Shrouding: Unshrouded
  Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
  Row Spacing - Mating: 0.050" (1.27mm)
