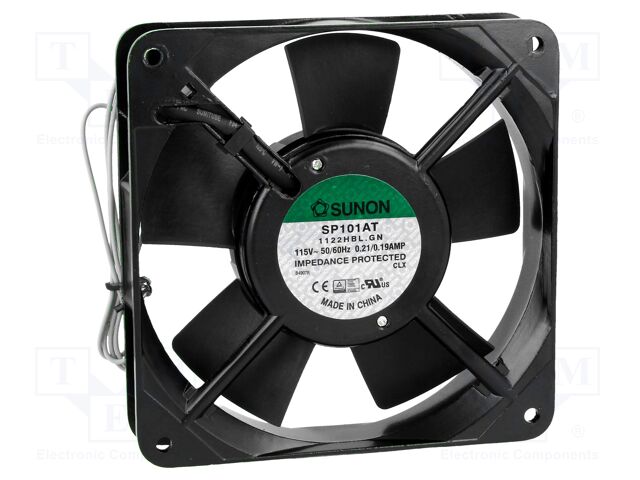

SP101AT-1122HBL.GN Sunon
| Кількість | Ціна |
|---|---|
| 1+ | 1968.71 грн |
| 40+ | 1603.27 грн |
| 120+ | 1344.68 грн |
| 280+ | 1336.32 грн |
| 520+ | 1303.57 грн |
Відгуки про товар
Написати відгук
Технічний опис SP101AT-1122HBL.GN Sunon
Category: AC115V Fans, Description: Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball, Type of fan: AC, Kind of fan: axial, Supply voltage: 115V AC, Fan dimensions: 120x120x25mm, Power consumption: 18W, Current rating: 0.18A, Fan efficiency: 132m3/h (±7%), Noise level: 46dBA, Kind of Bearing: ball, Rotational rate/speed: 2300rpm, Current and power consumption tolerance: ±15%, Frequency: 60Hz, Min. insulation resistance: 500MΩ, Impeller material: thermoplastic, Enclosure material: aluminium, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 4.06mm H2O, Lead length: 0.3m, Wire size: 24AWG.
Інші пропозиції SP101AT-1122HBL.GN за ціною від 1338.41 грн до 2567.78 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP101AT 1122HBL.GN | Виробник : SUNON |
 Description: SUNON - SP101AT 1122HBL.GN - AC-Axiallüfter, 115V, Quadratisch, 120 mm, 25 mm, Kugellager, 80 cu.ft/mintariffCode: 84145925 Stromanschluss: 2 Anschlussdrähte rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Kugellager Nennleistung: 19W isCanonical: Y IP-Schutzart: - usEccn: EAR99 Luftstrom - m3/min: 2.26m³/min Nennstrom: 210mA AC-Nennspannung: 115V Außentiefe: 25mm Geräuschentwicklung: 48dBA euEccn: NLR Luftstrom - CFM: 80cu.ft/min Lüfterrahmen: Quadratisch Produktpalette: SP productTraceability: No Rahmengröße: 120mm Nenndrehzahl: 2500rpm SVHC: No SVHC (27-Jun-2024) |
на замовлення 300 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
SP101AT-1122HBL.GN | Виробник : Sunon Fans |
Description: FAN AXIAL 119.5X25.5MM 115VAC Termination: 2 Wire Leads Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Weight: 0.728 lb (330.22 g) Width: 25.50mm Air Flow: 80.0 CFM (2.24m³/min) RPM: 2500 RPM Bearing Type: Ball Size / Dimension: Square - 119.5mm L x 119.5mm H Voltage - Rated: 115VAC Power (Watts): 18.00W Packaging: Bulk Part Status: Active Static Pressure: 0.170 in H2O (42.3 Pa) Noise: 48.0dB(A) Fan Type: Tubeaxial Approval Agency: CE, CUR, TUV, UL |
товару немає в наявності |
|||||||||||||
 |
SP101AT1122HBL.GN | Виробник : SUNON |
Category: AC115V Fans Description: Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball Type of fan: AC Kind of fan: axial Supply voltage: 115V AC Fan dimensions: 120x120x25mm Power consumption: 18W Current rating: 0.18A Fan efficiency: 132m3/h (±7%) Noise level: 46dBA Kind of Bearing: ball Rotational rate/speed: 2300rpm Current and power consumption tolerance: ±15% Frequency: 60Hz Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: aluminium Leads: leads x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 4.06mm H2O Lead length: 0.3m Wire size: 24AWG |
товару немає в наявності |
