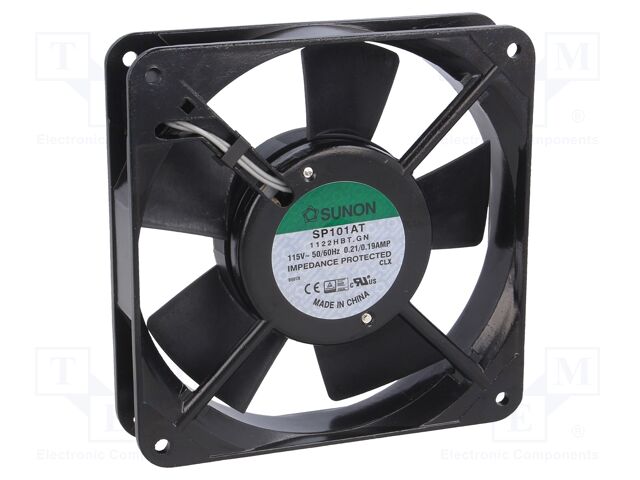

SP101AT1122HBT.GN SUNON

Category: AC115V Fans
Description: Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball
Current rating: 0.21A
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Leads dimensions: 2.8x0.3mm
Fan dimensions: 120x120x25mm
Static pressure: 3.5mm H2O
Power consumption: 19W
Supply voltage: 115V AC
Current and power consumption tolerance: ±15%
Noise level: 46dBA
Fan efficiency: 132m3/h (±7%)
Frequency: 50Hz
Rotational rate/speed: 2150rpm
Min. insulation resistance: 500MΩ
Type of fan: AC
Enclosure material: aluminium
Kind of fan: axial
Kind of Bearing: ball
Leads: connectors
на замовлення 402 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
1+ | 833.60 грн |
10+ | 714.70 грн |
40+ | 652.17 грн |
Відгуки про товар
Написати відгук
Технічний опис SP101AT1122HBT.GN SUNON
Category: AC115V Fans, Description: Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball, Current rating: 0.21A, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Leads dimensions: 2.8x0.3mm, Fan dimensions: 120x120x25mm, Static pressure: 3.5mm H2O, Power consumption: 19W, Supply voltage: 115V AC, Current and power consumption tolerance: ±15%, Noise level: 46dBA, Fan efficiency: 132m3/h (±7%), Frequency: 50Hz, Rotational rate/speed: 2150rpm, Min. insulation resistance: 500MΩ, Type of fan: AC, Enclosure material: aluminium, Kind of fan: axial, Kind of Bearing: ball, Leads: connectors, кількість в упаковці: 1 шт.
Інші пропозиції SP101AT1122HBT.GN за ціною від 782.61 грн до 2988.45 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
SP101AT1122HBT.GN | Виробник : SUNON |
![]() Description: Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball Current rating: 0.21A Impeller material: thermoplastic Flammability rating: UL94V-0 Operating temperature: -10...70°C Leads dimensions: 2.8x0.3mm Fan dimensions: 120x120x25mm Static pressure: 3.5mm H2O Power consumption: 19W Supply voltage: 115V AC Current and power consumption tolerance: ±15% Noise level: 46dBA Fan efficiency: 132m3/h (±7%) Frequency: 50Hz Rotational rate/speed: 2150rpm Min. insulation resistance: 500MΩ Type of fan: AC Enclosure material: aluminium Kind of fan: axial Kind of Bearing: ball Leads: connectors кількість в упаковці: 1 шт |
на замовлення 402 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
![]() |
SP101AT-1122HBT.GN | Виробник : Sunon |
![]() |
на замовлення 261 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
SP101AT-1122HBT.GN | Виробник : Sunon |
![]() |
на замовлення 595 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
SP101AT-1122HBT.GN | Виробник : Sunon |
![]() |
на замовлення 24 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
SP101AT1122HBT Код товару: 143417
Додати до обраних
Обраний товар
|
Корпусні та встановлювальні вироби > Вентилятори та аксесуари |
товару немає в наявності
|
|||||||||||||
|
SP101AT-1122HBT.GN | Виробник : Sunon Fans |
![]() Power (Watts): 18.00W Packaging: Bulk Voltage - Rated: 115VAC Size / Dimension: Square - 119.5mm L x 119.5mm H Bearing Type: Ball RPM: 2500 RPM Air Flow: 80.0 CFM (2.24m³/min) Width: 25.50mm Weight: 0.728 lb (330.22 g) Termination: 2 Terminals Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 48.0dB(A) Static Pressure: 0.170 in H2O (42.3 Pa) Part Status: Active |
товару немає в наявності |
