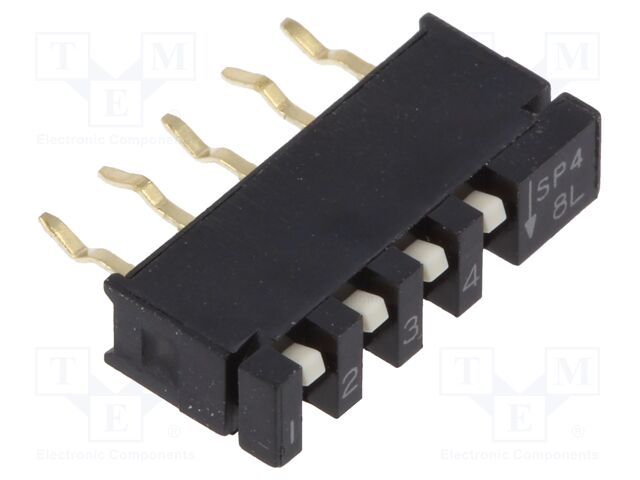

SPA04B C&K
Виробник: C&K
Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.01A/5VDC; Pos: 2; THT
Type of switch: DIP-SWITCH
Poles number: 4
Switching method: OFF-ON
DC contacts rating @R: 0.01A / 5V DC
Number of positions: 2
Stable positions number: 2
Mounting: THT
Operating temperature: -30...60°C
Terminal pitch: 2.54mm
Min. insulation resistance: 0.1GΩ
Body dimensions: 6.2x3.2x13.76mm
Manufacturer series: SPA
Kind of package: tube
Quantity in set/package: 30pcs.
Max. contact resistance:: 50mΩ
Contact material: gold
Leads: for soldering
Contacts configuration: SPST
| Кількість | Ціна |
|---|---|
| 2+ | 238.85 грн |
| 10+ | 198.08 грн |
Відгуки про товар
Написати відгук
Технічний опис SPA04B C&K
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.01A/5VDC; Pos: 2; THT, Type of switch: DIP-SWITCH, Poles number: 4, Switching method: OFF-ON, DC contacts rating @R: 0.01A / 5V DC, Number of positions: 2, Stable positions number: 2, Mounting: THT, Operating temperature: -30...60°C, Terminal pitch: 2.54mm, Min. insulation resistance: 0.1GΩ, Body dimensions: 6.2x3.2x13.76mm, Manufacturer series: SPA, Kind of package: tube, Quantity in set/package: 30pcs., Max. contact resistance:: 50mΩ, Contact material: gold, Leads: for soldering, Contacts configuration: SPST.
Інші пропозиції SPA04B за ціною від 153.26 грн до 299.85 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SPA04B | C&K |
DIP Switches/SIP Switches SIP VERT 4 POS |
на замовлення 477 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
 |
SPA04B | C&K |
Description: SWITCH SLIDE DIP SPST 0.01A 20V Packaging: Tube Number of Positions: 4 Part Status: Active Contact Material: Beryllium Copper Washable: Yes Actuator Level: Flush, Recessed Height Above Board: 0.244" (6.20mm) Actuator Type: Slide (Standard) Termination Style: PC Pin Operating Temperature: -30°C ~ 60°C Circuit: SPST Pitch: 0.100" (2.54mm), Full Mounting Type: Through Hole Current Rating (Amps): 10mA Voltage Rating: 20VDC Contact Finish: Gold |
на замовлення 14357 шт: термін постачання 21-31 дні (днів) |
|
| SPA04B |
|
Виробник: C&K
DIP Switches/SIP Switches SIP VERT 4 POS
DIP Switches/SIP Switches SIP VERT 4 POS
на замовлення 477 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 2+ | 257.63 грн |
| 10+ | 235.34 грн |
| 30+ | 183.55 грн |
| 120+ | 168.08 грн |
| SPA04B |
|
Виробник: C&K
Description: SWITCH SLIDE DIP SPST 0.01A 20V
Packaging: Tube
Number of Positions: 4
Part Status: Active
Contact Material: Beryllium Copper
Washable: Yes
Actuator Level: Flush, Recessed
Height Above Board: 0.244" (6.20mm)
Actuator Type: Slide (Standard)
Termination Style: PC Pin
Operating Temperature: -30°C ~ 60°C
Circuit: SPST
Pitch: 0.100" (2.54mm), Full
Mounting Type: Through Hole
Current Rating (Amps): 10mA
Voltage Rating: 20VDC
Contact Finish: Gold
Description: SWITCH SLIDE DIP SPST 0.01A 20V
Packaging: Tube
Number of Positions: 4
Part Status: Active
Contact Material: Beryllium Copper
Washable: Yes
Actuator Level: Flush, Recessed
Height Above Board: 0.244" (6.20mm)
Actuator Type: Slide (Standard)
Termination Style: PC Pin
Operating Temperature: -30°C ~ 60°C
Circuit: SPST
Pitch: 0.100" (2.54mm), Full
Mounting Type: Through Hole
Current Rating (Amps): 10mA
Voltage Rating: 20VDC
Contact Finish: Gold
на замовлення 14357 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 2+ | 299.85 грн |
| 10+ | 240.90 грн |
| 30+ | 219.85 грн |
| 120+ | 184.06 грн |
| 270+ | 172.72 грн |
| 510+ | 164.73 грн |
| 1020+ | 154.34 грн |
| 2520+ | 153.26 грн |
