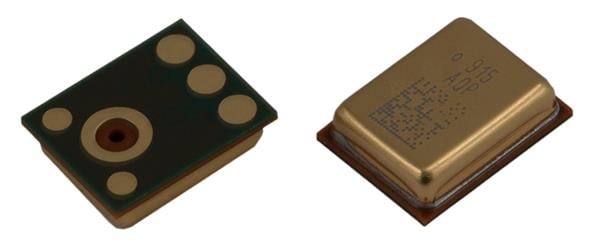

SPM0192LR5H-1 Syntiant
Виробник: Syntiant
Description: MEMS MIC
Current - Supply: 235 µA
Impedance: 330 Ohms
Voltage - Rated: 2.75 V
Height (Max): 0.049" (1.25mm)
Port Location: Bottom
Direction: Omnidirectional
Termination: Solder Pads
S/N Ratio: 70.5dB
Type: MEMS (Silicon)
Shape: Rectangular
Sensitivity: -34dB ±1dB @ 94dB SPL
Size / Dimension: 0.186" L x 0.148" W (4.72mm x 3.76mm)
Output Type: Analog
Packaging: Cut Tape (CT)
Frequency Range: 35 Hz ~ 10 kHz
Voltage Range: 2.3 V ~ 3.6 V
| Кількість | Ціна |
|---|---|
| 3+ | 144.22 грн |
| 10+ | 108.84 грн |
| 25+ | 99.03 грн |
| 50+ | 86.64 грн |
| 100+ | 80.83 грн |
| 250+ | 75.63 грн |
Відгуки про товар
Написати відгук
Технічний опис SPM0192LR5H-1 Syntiant
Description: MEMS MIC, Current - Supply: 235 µA, Impedance: 330 Ohms, Voltage - Rated: 2.75 V, Height (Max): 0.049" (1.25mm), Port Location: Bottom, Direction: Omnidirectional, Termination: Solder Pads, S/N Ratio: 70.5dB, Type: MEMS (Silicon), Shape: Rectangular, Sensitivity: -34dB ±1dB @ 94dB SPL, Size / Dimension: 0.186" L x 0.148" W (4.72mm x 3.76mm), Output Type: Analog, Packaging: Cut Tape (CT), Frequency Range: 35 Hz ~ 10 kHz, Voltage Range: 2.3 V ~ 3.6 V.
Інші пропозиції SPM0192LR5H-1
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| SPM0192LR5H-1 | Виробник : Syntiant |
Description: MEMS MIC Current - Supply: 235 µA Impedance: 330 Ohms Voltage - Rated: 2.75 V Height (Max): 0.049" (1.25mm) Port Location: Bottom Direction: Omnidirectional Termination: Solder Pads S/N Ratio: 70.5dB Type: MEMS (Silicon) Shape: Rectangular Sensitivity: -34dB ±1dB @ 94dB SPL Size / Dimension: 0.186" L x 0.148" W (4.72mm x 3.76mm) Output Type: Analog Packaging: Box Frequency Range: 35 Hz ~ 10 kHz Voltage Range: 2.3 V ~ 3.6 V |
товару немає в наявності |
||
 |
SPM0192LR5H-1 | Виробник : Syntiant |
MEMS Microphones HIGH SNR, HIGH AOP ANALOG BOTTOM PORT SISONIC MICROPHONE |
товару немає в наявності |
