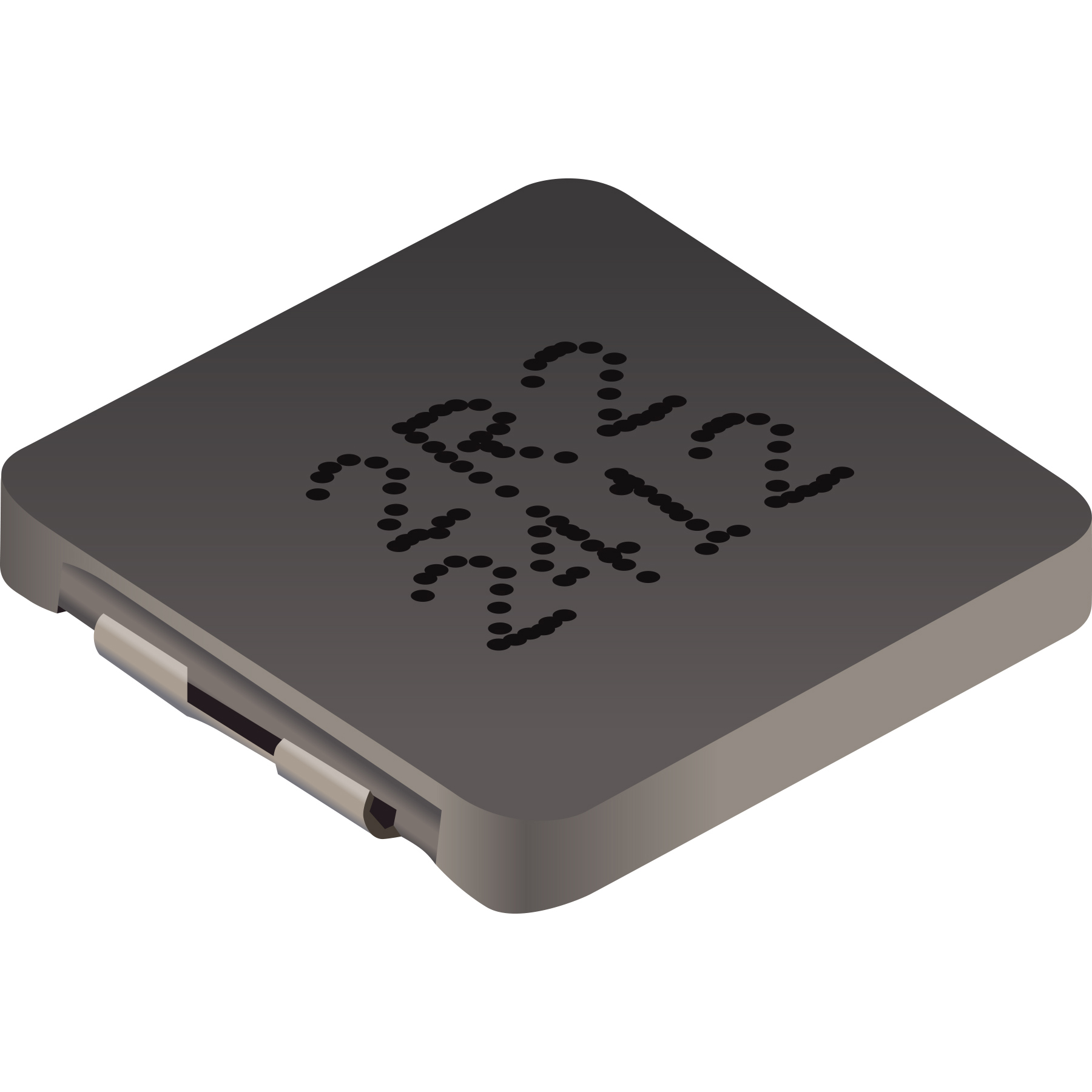

SRP0610F-4R7M Bourns Inc.
Виробник: Bourns Inc.Description: IND SHLD 4.7UH20% 3.5A
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Nonstandard
Size / Dimension: 0.240" L x 0.240" W (6.10mm x 6.10mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Molded
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 108mOhm Max
Q @ Freq: 15 @ 100MHz
Frequency - Self Resonant: 18MHz
Current - Saturation (Isat): 5A
Material - Core: Metal
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.039" (1.00mm)
Inductance: 4.7 µH
Current Rating (Amps): 3.5 A
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис SRP0610F-4R7M Bourns Inc.
Description: IND SHLD 4.7UH20% 3.5A, Tolerance: ±20%, Packaging: Tape & Reel (TR), Package / Case: Nonstandard, Size / Dimension: 0.240" L x 0.240" W (6.10mm x 6.10mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Molded, Operating Temperature: -40°C ~ 125°C, DC Resistance (DCR): 108mOhm Max, Q @ Freq: 15 @ 100MHz, Frequency - Self Resonant: 18MHz, Current - Saturation (Isat): 5A, Material - Core: Metal, Inductance Frequency - Test: 100 kHz, Height - Seated (Max): 0.039" (1.00mm), Inductance: 4.7 µH, Current Rating (Amps): 3.5 A.
