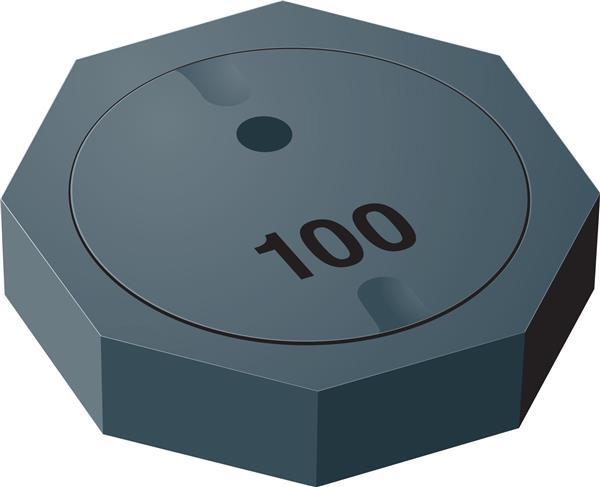

SRU6025A-470Y Bourns Inc.
Виробник: Bourns Inc.
Description: FIXED IND 47UH 1A 250 MOHM SMD
Current Rating (Amps): 1 A
Inductance: 47 µH
Height - Seated (Max): 0.110" (2.80mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Ferrite
Current - Saturation (Isat): 480mA
Ratings: AEC-Q200
Frequency - Self Resonant: 10MHz
Q @ Freq: 12 @ 2.52MHz
DC Resistance (DCR): 250mOhm Max
Operating Temperature: -40°C ~ 125°C
Type: Drum Core, Wirewound
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.256" L x 0.244" W (6.50mm x 6.20mm)
Package / Case: Nonstandard
Tolerance: ±30%
Packaging: Tape & Reel (TR)
| Кількість | Ціна без ПДВ |
|---|---|
| 600+ | 34.55 грн |
| 1200+ | 30.80 грн |
| 1800+ | 29.43 грн |
Відгуки про товар
Написати відгук
Технічний опис SRU6025A-470Y Bourns Inc.
Description: FIXED IND 47UH 1A 250 MOHM SMD, Current Rating (Amps): 1 A, Inductance: 47 µH, Height - Seated (Max): 0.110" (2.80mm), Inductance Frequency - Test: 100 kHz, Material - Core: Ferrite, Current - Saturation (Isat): 480mA, Ratings: AEC-Q200, Frequency - Self Resonant: 10MHz, Q @ Freq: 12 @ 2.52MHz, DC Resistance (DCR): 250mOhm Max, Operating Temperature: -40°C ~ 125°C, Type: Drum Core, Wirewound, Shielding: Shielded, Mounting Type: Surface Mount, Size / Dimension: 0.256" L x 0.244" W (6.50mm x 6.20mm), Package / Case: Nonstandard, Tolerance: ±30%, Packaging: Tape & Reel (TR).
Інші пропозиції SRU6025A-470Y за ціною від 25.20 грн до 81.35 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SRU6025A-470Y | Bourns Inc. |
Description: FIXED IND 47UH 1A 250 MOHM SMD Tolerance: ±30% Packaging: Cut Tape (CT) Package / Case: Nonstandard Size / Dimension: 0.256" L x 0.244" W (6.50mm x 6.20mm) Mounting Type: Surface Mount Shielding: Shielded Type: Drum Core, Wirewound Operating Temperature: -40°C ~ 125°C DC Resistance (DCR): 250mOhm Max Q @ Freq: 12 @ 2.52MHz Frequency - Self Resonant: 10MHz Ratings: AEC-Q200 Current - Saturation (Isat): 480mA Material - Core: Ferrite Inductance Frequency - Test: 100 kHz Height - Seated (Max): 0.110" (2.80mm) Inductance: 47 µH Current Rating (Amps): 1 A |
на замовлення 2400 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
SRU6025A-470Y | Bourns |
Power Inductors - SMD 47uH 30% SMD 6025 AEC-Q200 |
на замовлення 365 шт: термін постачання 21-30 дні (днів) |
|
| SRU6025A-470Y |
|
Виробник: Bourns Inc.
Description: FIXED IND 47UH 1A 250 MOHM SMD
Tolerance: ±30%
Packaging: Cut Tape (CT)
Package / Case: Nonstandard
Size / Dimension: 0.256" L x 0.244" W (6.50mm x 6.20mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 250mOhm Max
Q @ Freq: 12 @ 2.52MHz
Frequency - Self Resonant: 10MHz
Ratings: AEC-Q200
Current - Saturation (Isat): 480mA
Material - Core: Ferrite
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.110" (2.80mm)
Inductance: 47 µH
Current Rating (Amps): 1 A
Description: FIXED IND 47UH 1A 250 MOHM SMD
Tolerance: ±30%
Packaging: Cut Tape (CT)
Package / Case: Nonstandard
Size / Dimension: 0.256" L x 0.244" W (6.50mm x 6.20mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 250mOhm Max
Q @ Freq: 12 @ 2.52MHz
Frequency - Self Resonant: 10MHz
Ratings: AEC-Q200
Current - Saturation (Isat): 480mA
Material - Core: Ferrite
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.110" (2.80mm)
Inductance: 47 µH
Current Rating (Amps): 1 A
на замовлення 2400 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 5+ | 69.90 грн |
| SRU6025A-470Y |
|
Виробник: Bourns
Power Inductors - SMD 47uH 30% SMD 6025 AEC-Q200
Power Inductors - SMD 47uH 30% SMD 6025 AEC-Q200
на замовлення 365 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 4+ | 81.35 грн |
| 10+ | 63.04 грн |
| 100+ | 48.81 грн |
| 600+ | 31.89 грн |
| 1200+ | 29.34 грн |
| 2400+ | 25.20 грн |
