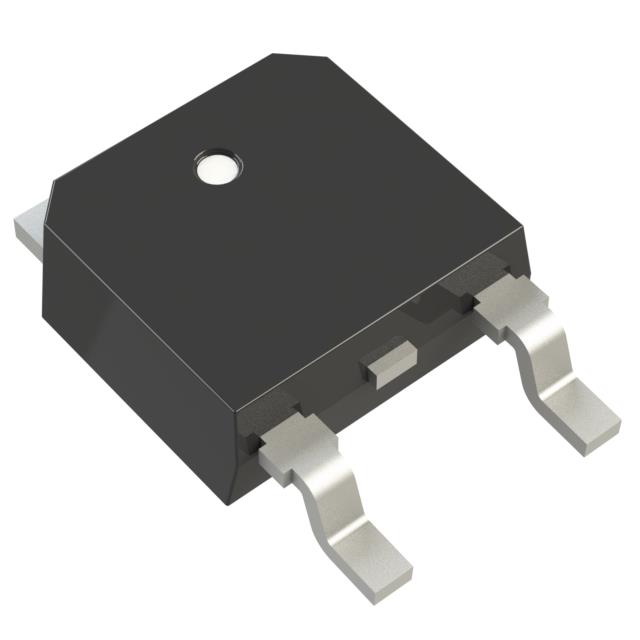

STGD4H60DF STMicroelectronics

Description: IGBT TRENCH FS 600V 8A DPAK, Power - Max: 75 W, Current - Collector Pulsed (Icm): 16 A, Voltage - Collector Emitter Breakdown (Max): 600 V, Current - Collector (Ic) (Max): 8 A, Gate Charge: 35 nC, Test Condition: 400V, 3A, 47Ohm, 15V, Switching Energy: 68µJ (on), 45µJ (off), Td (on/off) @ 25°C: 35ns/121ns, IGBT Type: Trench Field Stop, Supplier Device Package: DPAK (TO-252) type C2, Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 3A, Reverse Recovery Time (trr): 73 ns, Input Type: Standard, Operating Temperature: -55°C ~ 175°C (TJ), Mounting Type: Surface Mount, Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63, Packaging: Tape & Reel (TR).
