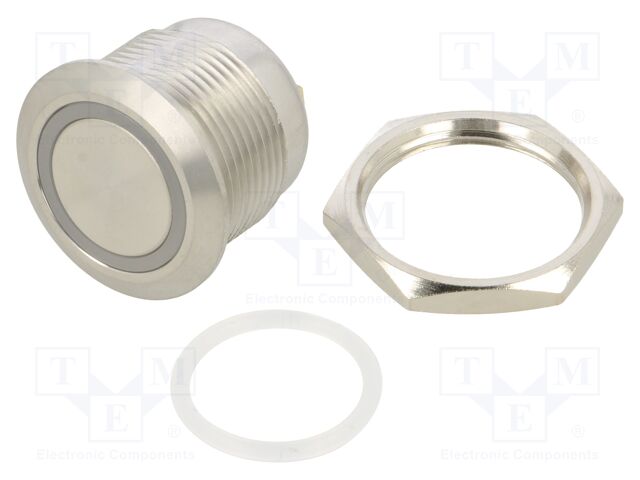

SV4F23SS-301 E-SWITCH
Виробник: E-SWITCH
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP67; OFF-(ON)
Mounting: on panel
Actuator colour: silver
Body colour: silver
Button shape: flat; round
Type of switch: vandal resistant
Leads: for soldering
Backlight colour: white
IP rating: IP67
Illumination: LED; ring
Switching method: OFF-(ON)
Contacts configuration: SPST-NO
Operating temperature: -20...70°C
Panel thickness: 1...6mm
Key stroke: 1.8mm
Body dimensions: Ø22x18.8mm
Mounting hole diameter: Ø19mm
DC contacts rating @R: 2A / 36V DC
Max. contact resistance:: 50mΩ
Stable positions number: 1
Number of positions: 2
Operating Force: 4.5N
Electrical life: 200000 cycles
Mechanical durability: 1000000 cycles
Manufacturer series: SV4
Contact material: silver
Відгуки про товар
Написати відгук
Технічний опис SV4F23SS-301 E-SWITCH
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP67; OFF-(ON), Mounting: on panel, Actuator colour: silver, Body colour: silver, Button shape: flat; round, Type of switch: vandal resistant, Leads: for soldering, Backlight colour: white, IP rating: IP67, Illumination: LED; ring, Switching method: OFF-(ON), Contacts configuration: SPST-NO, Operating temperature: -20...70°C, Panel thickness: 1...6mm, Key stroke: 1.8mm, Body dimensions: Ø22x18.8mm, Mounting hole diameter: Ø19mm, DC contacts rating @R: 2A / 36V DC, Max. contact resistance:: 50mΩ, Stable positions number: 1, Number of positions: 2, Operating Force: 4.5N, Electrical life: 200000 cycles, Mechanical durability: 1000000 cycles, Manufacturer series: SV4, Contact material: silver.
Інші пропозиції SV4F23SS-301 за ціною від 719.51 грн до 1249.83 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SV4F23SS-301 | Виробник : E-Switch |
Pushbutton Switches 19mm dia, 2A 36VDC, White LED Ring, Solder |
на замовлення 89 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
 |
SV4F23SS-301 | Виробник : E-Switch |
Description: SWITCH PB SPST-NO 2A 36V Packaging: Bulk Current Rating (Amps): 2A (DC) Mounting Type: Panel Mount, Front Circuit: SPST-NO Type: Anti-Vandal, Illuminated Switch Function: Off-Mom Operating Temperature: -20°C ~ 70°C Termination Style: Solder, Quick Connect - 0.110" (2.8mm) Illumination Type, Color: LED, White Illumination Voltage (Nominal): 3.1 VDC Actuator Type: Round, Button, Flush Ingress Protection: IP67 - Dust Tight, Waterproof Panel Cutout Dimensions: Circular - 19.00mm Dia Color - Actuator/Cap: Silver Actuator Marking: No Marking Voltage Rating - DC: 36 V |
на замовлення 159 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
SV4F23SS-301 | Виробник : E-SWITCH |
Description: E-SWITCH - SV4F23SS-301 - Vandalensicherer Schalter, SV4 Series, 19 mm, SPST-NO-DM, Aus-(Ein), Rund, flach, Natur tariffCode: 85365019 rohsCompliant: YES Schalteranschlüsse: Lötfahne Betätiger-/Kappenfarbe: Natur hazardous: false rohsPhthalatesCompliant: YES Plattenausschnitt (H x B): - Schalterfunktion: Aus-(Ein) IP-Schutzart: IP67 usEccn: EAR99 AC-Kontaktstrom, max.: - euEccn: NLR DC-Kontaktstrom, max.: 2A Kontaktspannung V DC: 36V Farbe der Beleuchtung: Weiß Durchmesser des Frontplattenausschnitts: 19mm Schaltermontage: Panelmontage Produktpalette: SV4 Series productTraceability: No Druckknopf-Betätiger: Rund, flach Kontaktkonfiguration: SPST-NO-DM Kontaktspannung V AC: - SVHC: No SVHC (27-Jun-2018) |
на замовлення 6 шт: термін постачання 21-31 дні (днів) |
|
