Продукція > SAMTEC > T1M-15-F-SH-L

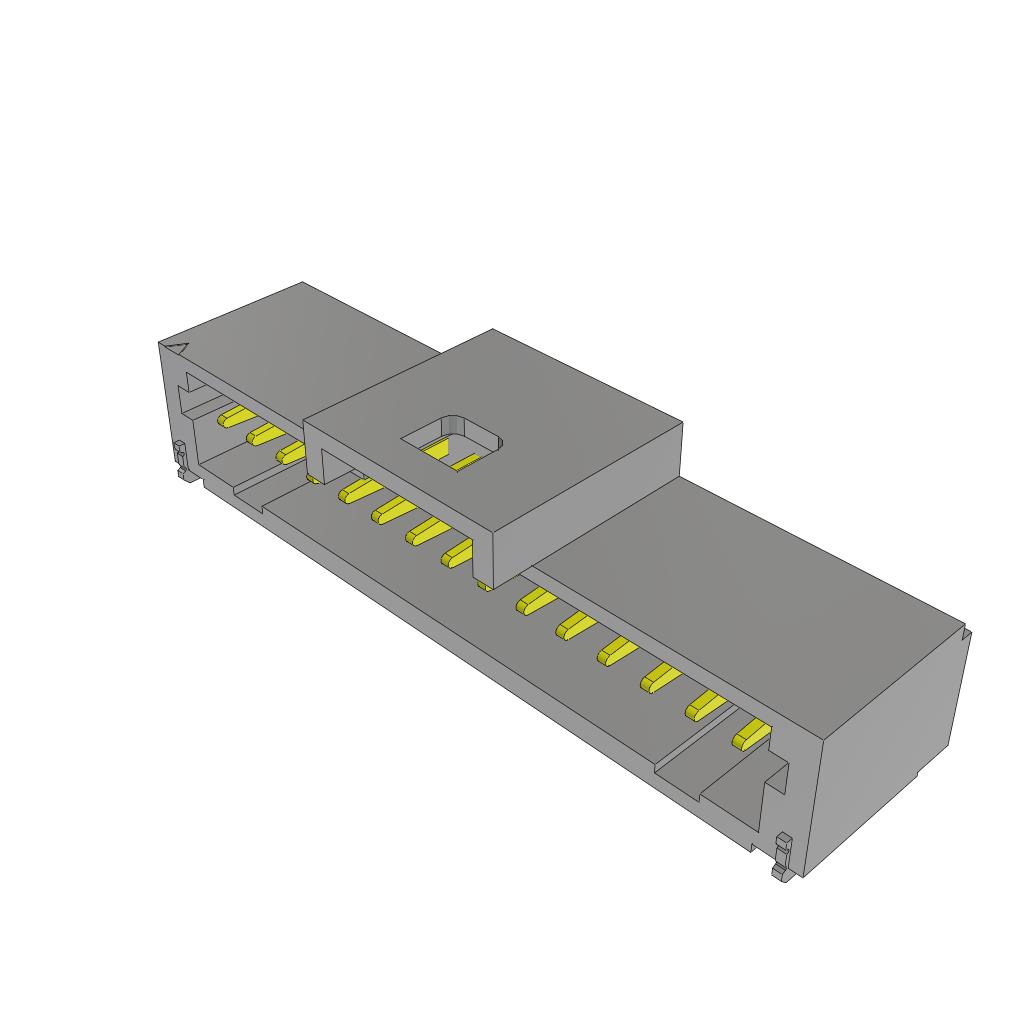

T1M-15-F-SH-L

T1M-15-F-SH-L Samtec

t1m-xx-x-sh-l-x-xx-mkt.pdf Виробник: Samtec
Headers & Wire Housings Discrete Wire Terminal Strip
на замовлення 1582 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
3+130.42 грн
50+121.42 грн
100+99.37 грн
500+98.59 грн
1900+93.94 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис T1M-15-F-SH-L Samtec

Description: 1.00 MM DISCRETE WIRE TERMINAL S, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 250VAC, 353VDC, Current Rating (Amps): 2.2A per Contact, Mounting Type: Surface Mount, Right Angle, Number of Positions: 15, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.181" (4.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP).

Інші пропозиції T1M-15-F-SH-L за ціною від 176.01 грн до 264.53 грн

Фото Назва Виробник Інформація Доступність
Ціна
T1M-15-F-SH-L T1M-15-F-SH-L Виробник : Samtec Inc. t1m-xx-x-sh-l-x-xx-mkt.pdf Description: 1.00 MM DISCRETE WIRE TERMINAL S
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 250VAC, 353VDC
Current Rating (Amps): 2.2A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 15
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.181" (4.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
на замовлення 389 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+264.53 грн
50+207.44 грн
100+176.01 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
T1M-15-F-SH-L T1M-15-F-SH-L Виробник : Samtec Inc. t1m-xx-x-sh-l-x-xx-mkt.pdf Description: 1.00 MM DISCRETE WIRE TERMINAL S
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 250VAC, 353VDC
Current Rating (Amps): 2.2A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 15
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.181" (4.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
товару немає в наявності
В кошику  од. на суму  грн.
