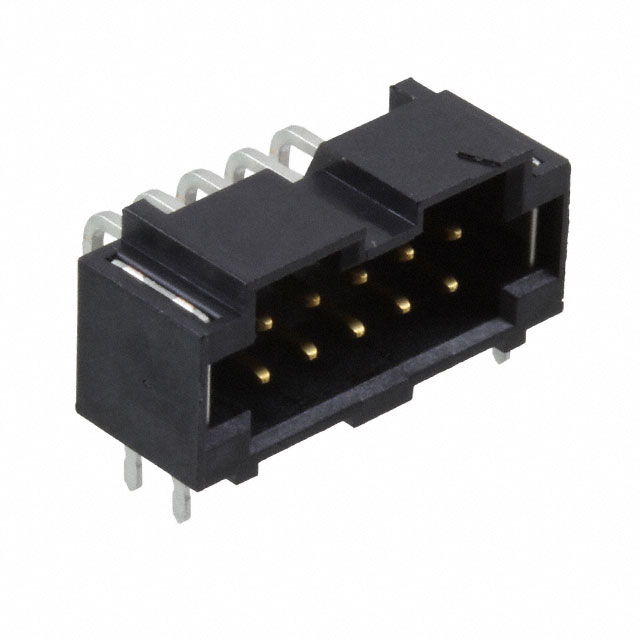

T2M-105-01-L-D-RA-WT Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER R/A 10POS 2MM
Features: Solder Retention
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 3.8A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.293" (7.44mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
| Кількість | Ціна |
|---|---|
| 2+ | 275.90 грн |
| 25+ | 239.90 грн |
| 50+ | 222.95 грн |
| 100+ | 199.45 грн |
| 500+ | 153.56 грн |
Відгуки про товар
Написати відгук
Технічний опис T2M-105-01-L-D-RA-WT Samtec Inc.
Description: CONN HEADER R/A 10POS 2MM, Features: Solder Retention, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 3.8A, Mounting Type: Through Hole, Right Angle, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.293" (7.44mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції T2M-105-01-L-D-RA-WT за ціною від 147.01 грн до 349.52 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T2M-105-01-L-D-RA-WT | Виробник : Samtec |
Headers & Wire Housings High Reliability Tiger Eye(TM) Discrete Wire Header |
на замовлення 1554 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
T2M-105-01-L-D-RA-WT | Виробник : SAMTEC |
Description: SAMTEC - T2M-105-01-L-D-RA-WT - Stiftleiste, hohe Zuverlässigkeit, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: T2M productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (04-Feb-2026) |
на замовлення 120 шт: термін постачання 21-31 дні (днів) |
|
