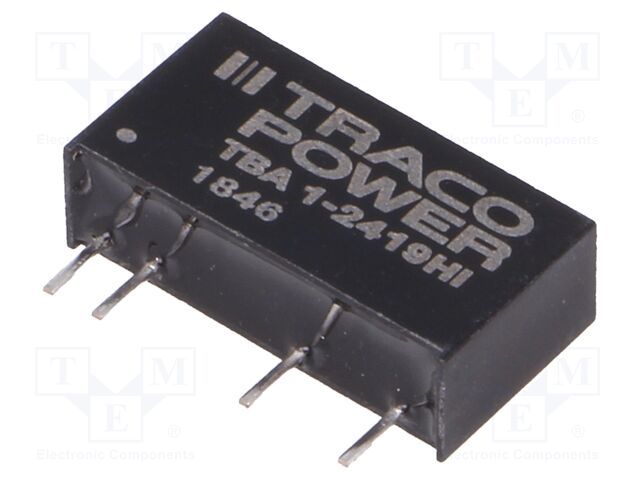

TBA 1-2419HI TRACO POWER
Виробник: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 21.6÷26.4VDC; Uout: 9VDC; Iout: 111mA
Type of converter: DC/DC
Power: 1W
Input voltage: 21.6...26.4V DC
Output voltage: 9V DC
Output current: 0.111A
Case: SIP7
Mounting: THT
Manufacturer series: TBA 1HI
Body dimensions: 19.5x9.5x6mm
Efficiency: 80%
Operating temperature: -40...85°C
Switching frequency: 200kHz
Protection: short circuit protection SCP
Insulation voltage: 3kV
Number of outputs: 1
Відгуки про товар
Написати відгук
Технічний опис TBA 1-2419HI TRACO POWER
Description: DC DC CONVERTER 9V 999MW, Voltage - Isolation: 3 kV, Number of Outputs: 1, Power (Watts): 999 mW, Part Status: Active, Voltage - Output 1: 9V, Voltage - Input (Min): 21.6V, Current - Output (Max): 111mA, Efficiency: 80%, Voltage - Input (Max): 26.4V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 95°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm), Package / Case: 7-SIP Module, 4 Leads, Features: SCP, Packaging: Tube.
Інші пропозиції TBA 1-2419HI за ціною від 196.99 грн до 407.90 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TBA 1-2419HI | Traco Power |
Description: DC DC CONVERTER 9V 999MW Voltage - Isolation: 3 kV Number of Outputs: 1 Power (Watts): 999 mW Part Status: Active Voltage - Output 1: 9V Voltage - Input (Min): 21.6V Current - Output (Max): 111mA Efficiency: 80% Voltage - Input (Max): 26.4V Applications: ITE (Commercial) Operating Temperature: -40°C ~ 95°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) Package / Case: 7-SIP Module, 4 Leads Features: SCP Packaging: Tube |
на замовлення 930 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
| TBA 1-2419HI | Traco Power |
TBA 1-2419HI |
на замовлення 40 шт: термін постачання 21-31 дні (днів) |
|
| TBA 1-2419HI |
|
Виробник: Traco Power
Description: DC DC CONVERTER 9V 999MW
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 999 mW
Part Status: Active
Voltage - Output 1: 9V
Voltage - Input (Min): 21.6V
Current - Output (Max): 111mA
Efficiency: 80%
Voltage - Input (Max): 26.4V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 95°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Package / Case: 7-SIP Module, 4 Leads
Features: SCP
Packaging: Tube
Description: DC DC CONVERTER 9V 999MW
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 999 mW
Part Status: Active
Voltage - Output 1: 9V
Voltage - Input (Min): 21.6V
Current - Output (Max): 111mA
Efficiency: 80%
Voltage - Input (Max): 26.4V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 95°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Package / Case: 7-SIP Module, 4 Leads
Features: SCP
Packaging: Tube
на замовлення 930 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 267.22 грн |
| 5+ | 245.41 грн |
| 10+ | 240.29 грн |
| 30+ | 218.10 грн |
| 50+ | 214.74 грн |
| 100+ | 210.28 грн |
| 250+ | 201.17 грн |
| 500+ | 196.99 грн |
| TBA 1-2419HI |
|
Виробник: Traco Power
TBA 1-2419HI
TBA 1-2419HI
на замовлення 40 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 35+ | 407.90 грн |
| 36+ | 396.02 грн |
