Продукція > XINYA > XY2500R-C(5.08)-10PIN

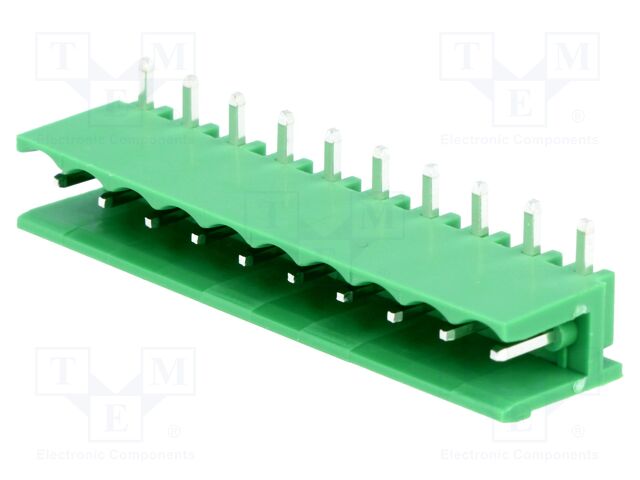

XY2500R-C(5.08)-10PIN

XY2500R-C(5.08)-10PIN XINYA

XY2500R-C.pdf
Виробник: XINYA
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; male; 12A; 300V; THT
Number of pins: 10
Contact plating: tinned
Spatial orientation: angled 90°
Rated voltage: 0.3kV
Contact material: brass
Flammability rating: UL94V-0
Connector variant: without side walls
Contacts pitch: 5.08mm
Connectors features: assembling possibility
Current rating: 12A
Colour: green
Operating temperature: -40...105°C
Mechanical mounting: on PCBs
Body material: polyamide 66
Electrical mounting: THT
Connector pinout layout: 1x10
Type of connector: pluggable terminal block
Locking system: friction lock
Number of ways: 10
Conform to the norm: UL
Kind of connector: male
Height: 8.4mm
Connector: socket
на замовлення 977 шт:
термін постачання 14-30 дні (днів)
КількістьЦіна без ПДВ
17+27.53 грн
20+23.70 грн
100+22.77 грн
400+19.89 грн
Мінімальне замовлення: 17 шт
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис XY2500R-C(5.08)-10PIN XINYA

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT, Type of connector: pluggable terminal block, Connector: socket, Kind of connector: male, Current rating: 15A, Rated voltage: 0.3kV, Number of pins: 10, Spatial orientation: angled 90°, Connector variant: without side walls, Mechanical mounting: on PCBs, Electrical mounting: THT, Contact material: brass, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide, Depth: 12.3mm, Length: 50.8mm, Connector pinout layout: 1x10, Contacts pitch: 5.08mm, Number of ways: 10, Locking system: friction lock, Height: 8mm, Connectors features: assembling possibility, Soldering temperature: 250°C / 5 s, Operating temperature: -40...105°C.

Інші пропозиції XY2500R-C(5.08)-10PIN за ціною від 55.02 грн до 79.31 грн

Фото Назва Виробник Інформація Доступність Ціна без ПДВ
TBG-5-KB-10P/GN TBG-5-KB-10P/GN NINIGI Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT
Type of connector: pluggable terminal block
Connector: socket
Kind of connector: male
Current rating: 15A
Rated voltage: 0.3kV
Number of pins: 10
Spatial orientation: angled 90°
Connector variant: without side walls
Mechanical mounting: on PCBs
Electrical mounting: THT
Contact material: brass
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 12.3mm
Length: 50.8mm
Connector pinout layout: 1x10
Contacts pitch: 5.08mm
Number of ways: 10
Locking system: friction lock
Height: 8mm
Connectors features: assembling possibility
Soldering temperature: 250°C / 5 s
Operating temperature: -40...105°C
на замовлення 71 шт:
термін постачання 14-30 дні (днів)
6+79.31 грн
20+55.02 грн
Мінімальне замовлення: 6 шт
В кошику  од. на суму  грн.
TBG-5-KB-10P/GN
TBG-5-KB-10P/GN
Виробник: NINIGI
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT
Type of connector: pluggable terminal block
Connector: socket
Kind of connector: male
Current rating: 15A
Rated voltage: 0.3kV
Number of pins: 10
Spatial orientation: angled 90°
Connector variant: without side walls
Mechanical mounting: on PCBs
Electrical mounting: THT
Contact material: brass
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 12.3mm
Length: 50.8mm
Connector pinout layout: 1x10
Contacts pitch: 5.08mm
Number of ways: 10
Locking system: friction lock
Height: 8mm
Connectors features: assembling possibility
Soldering temperature: 250°C / 5 s
Operating temperature: -40...105°C
на замовлення 71 шт:
термін постачання 14-30 дні (днів)
КількістьЦіна без ПДВ
6+79.31 грн
20+55.02 грн
Мінімальне замовлення: 6 шт
В кошику  од. на суму  грн.
