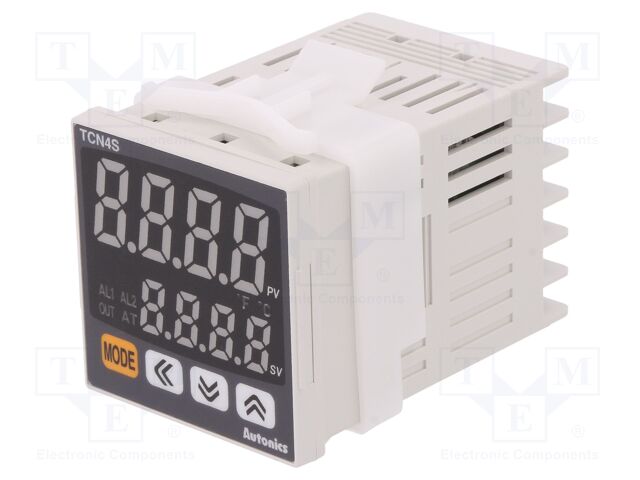

TCN4S-24R AUTONICS

Category: Temperature Regulators, Description: Automation module: regulator; temperature; -1999÷9999; SPST-NO, Type of automation module: regulator, Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L; thermocouple R; thermocouple S; thermocouple T, Controlled parameter: temperature, Controlled parameter range: -1999...9999, Kind of output 1: SPST-NO, Kind of output 2: SSR, Kind of output 3: alarm, Kind of output 4: alarm, Regulation for output 1: ON-OFF; P; PD; PI; PID, Mounting: on panel, Manufacturer series: TCN, Output 1 electrical parameters: 250V AC / 3A, Output 2 electrical parameters: 12V DC / 20mA, Output 3 electrical parameters: 250V AC / 1A, Supply voltage: 100...240V AC, The programming method: foil keypad, Mounting hole diameter: 45x45mm, Input 1 properties: RTD; thermocouple, Kind of display used: LED x2, Display height 1: 15mm, Display 2 height: 9.5mm, Body dimensions: 48x48x70.5mm, Operating temperature: -10...50°C, Output 4 electrical parameters: 250V AC / 1A, Display parameters: 4 digit.
